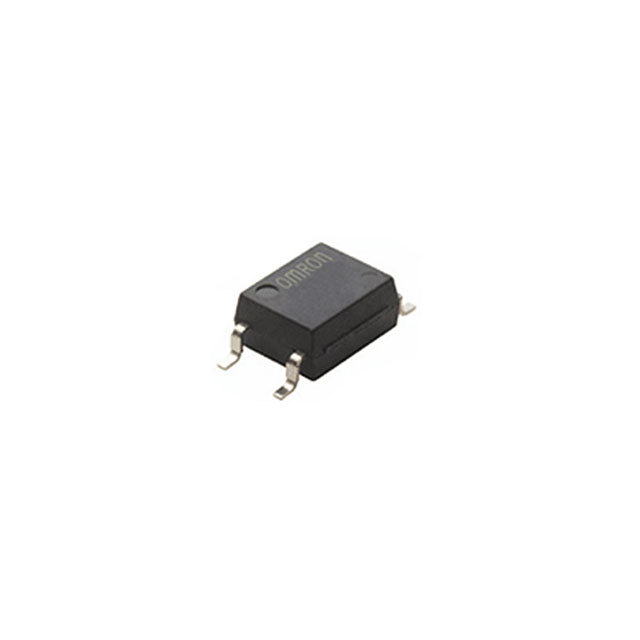

SSR RELAY SPST-NO 700MA 0-60V
All alternatives
View full reportTechnical parameters
Key specs
Input voltage1.27 V
Load voltage0 ~ 60 V
Load current700 mAMax
Output typeAC/DC
CircuitSPST-NO
| Power | |
|---|---|
| Load Current | 700 mA |
| Voltage - Input | 1.27VDC |
| Voltage - Load | 0 V ~ 60 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tube |
| Package / Case | 4-SOP (0.179", 4.55mm) |
| Supplier Device Package | 4-SOP |
| Other | |
| Base Product Number | G3VM |
| Circuit | SPST-NO (1 Form A) |
| Mfr | Omron Electronics Inc-EMC Div |
| On-State Resistance (Max) | 2 Ohms |
| Output Type | AC, DC |
| Product Status | Active |
| Series | G3VM |
| Termination Style | Gull Wing |
