Global Power Technology Co. LtdTaiwan, China

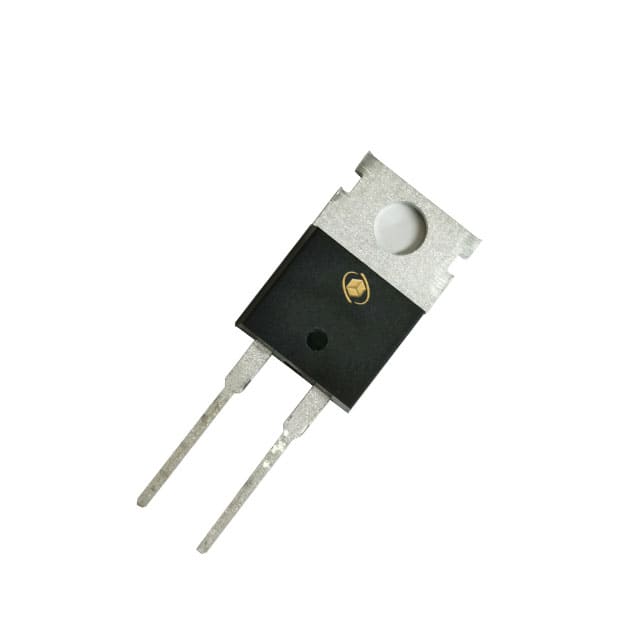

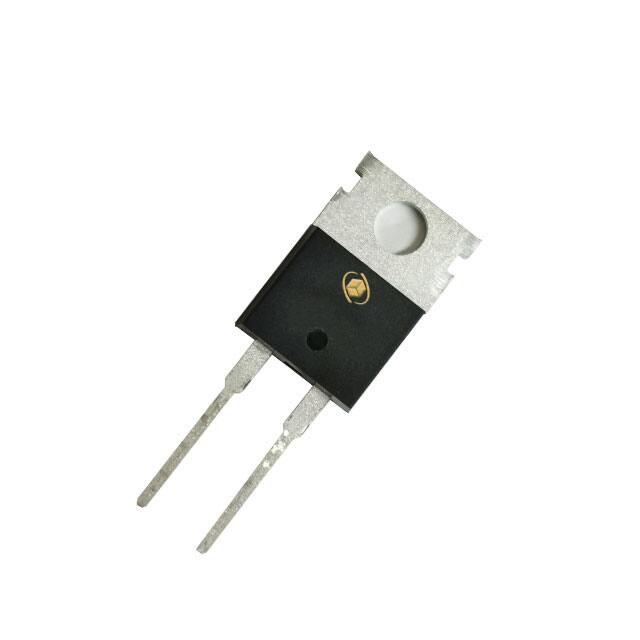

DIODE SIC 650V 11.5A TO220AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage650 V
Average rectified current11.5 A
Forward voltage1.7 VMax · 4 A
TypeSchottky
| Power | |
|---|---|
| Current - Average Rectified (Io) | 11.5A |
| Current - Reverse Leakage @ Vr | 50 µA @ 650 V |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 4 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -55°C~175°C |
| Package | Bulk |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Other | |
| Capacitance @ Vr, F | 181pF @ 0V, 1MHz |
| Diode Type | Silicon Carbide Schottky |
| Mfr | Global Power Technology Co. Ltd |
| Product Status | Active |
| Reverse Recovery Time (trr) | 0 ns |
| Series | - |
| Speed | No Recovery Time > 500mA (Io) |
Documents
No documents are linked to this part yet.
