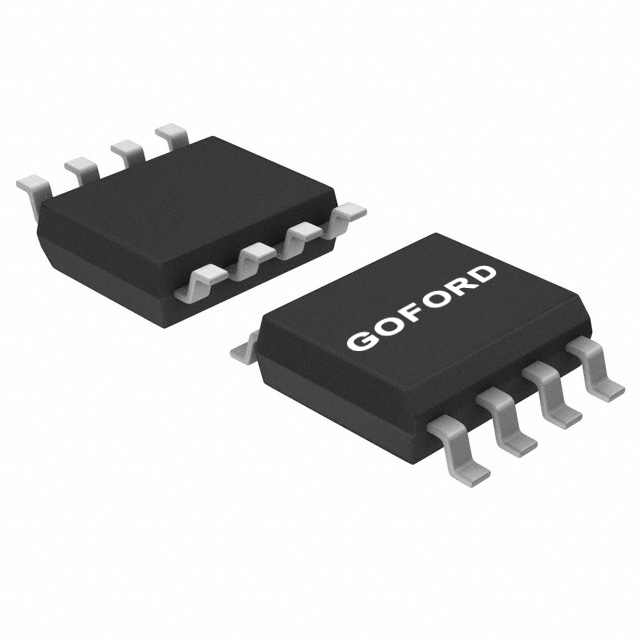

Goford SemiconductorTaiwan, China
P-100V, 3.5A,RD<200M@-10V,VTH1V~
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage100 V
Continuous drain current3.5 A
On-resistance200 mΩMax · 3A
Gate threshold voltage2.5 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Tc) |
| Drain to Source Voltage (Vdss) | 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 3.1W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Other | |
| FET Feature | Standard |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1653 pF @ 50 V |
| Mfr | Goford Semiconductor |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 3A, 10V |
| Series | TrenchFET® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
