Goford SemiconductorTaiwan, China
P-20V,RD(MAX)<18.4M@-4.5V,RD(MAX
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage20 V
Continuous drain current11 A
On-resistance18.4 mΩMax · 1A
Gate threshold voltage1.1 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Power Dissipation (Max) | 3.3W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

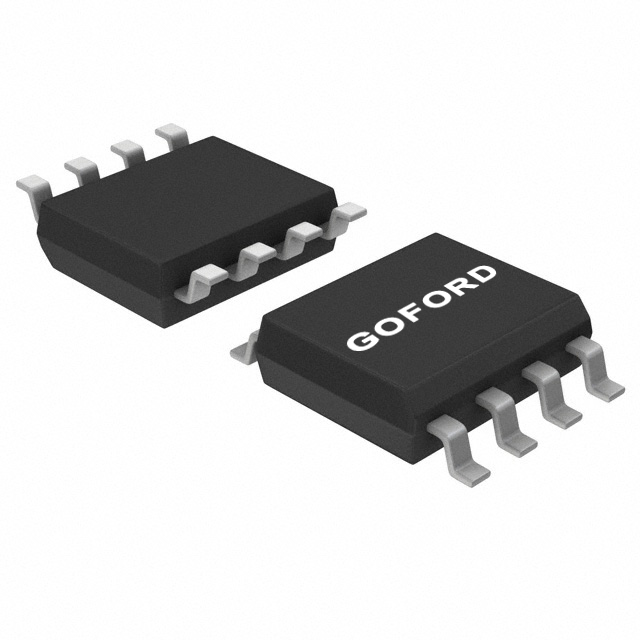

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Other | |
| FET Feature | - |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 47 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2455 pF @ 10 V |
| Mfr | Goford Semiconductor |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 18.4mOhm @ 1A, 4.5V |
| Series | G |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±12V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
