Goford SemiconductorTaiwan, China
N-CH, 30V, 100A, RD(MAX)<3.5M@10
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage30 V
Continuous drain current100 A
On-resistance3.5 mΩMax · 20A
Gate threshold voltage2.5 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 50W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

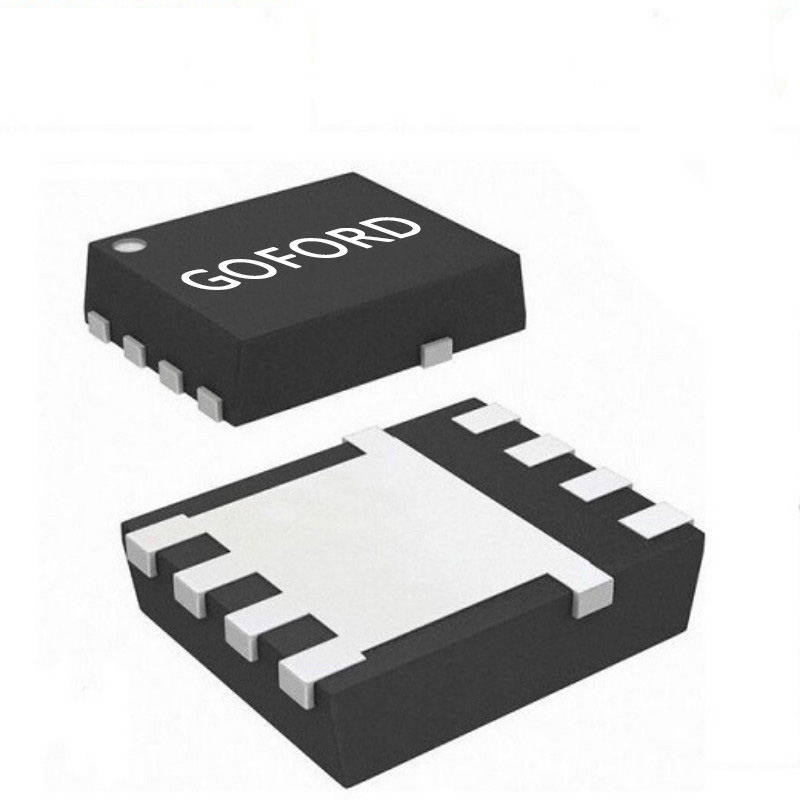

| Package / Case | 8-PowerTDFN |
| Supplier Device Package | 8-DFN (4.9x5.75) |
| Other | |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5595 pF @ 50 V |
| Mfr | Goford Semiconductor |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 3.5mOhm @ 20A, 10V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
