Century Spring CorpUnited States

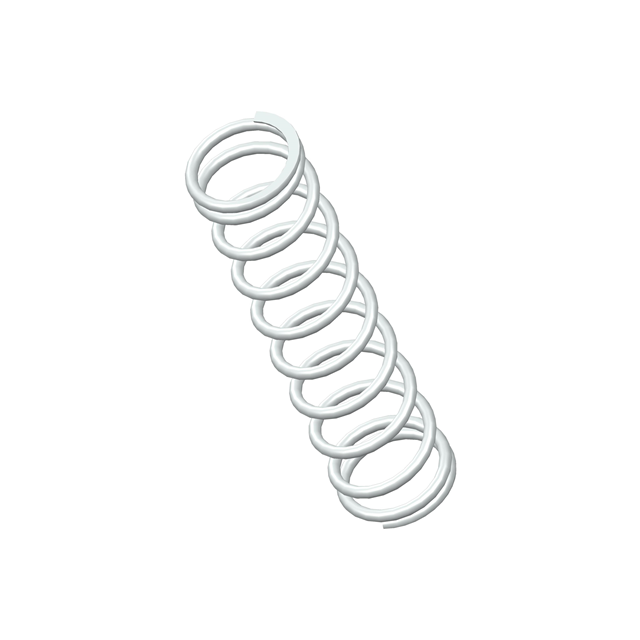

COMP O= .360,L= 1.50,W= .037
All alternatives
View full reportTechnical parameters
| Diameter - Inside | 0.286" (7.26mm) |
| Diameter - Outside | 0.360" (9.14mm) |
| End Style | Closed & Ground |
| Finish | None |
| Free Length | 1.500" (38.10mm) |
| Manufacturer | Century Spring Corp |
| Material | Stainless Steel |
| Packaging | Box |
| Part Status | Active |
| Rate | 8.3 lbs/in |
| Series | - |
| Type | Compression |
| Wire Diameter | 0.037" (0.94mm) |
