Inventus PowerUnited States

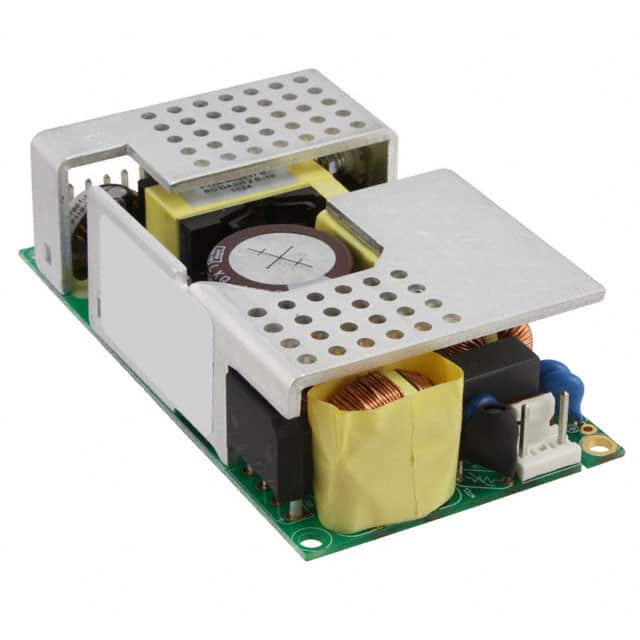

AC/DC CONVERTER 12V 100W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage100 ~ 240 V
Output voltage12 V
Output current8.3 AMax
Power100 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 8.3 A |
| Power (Watts) | 100W (120W Forced Air) |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~70°C |
| Package | Box |
| Size / Dimension | 4.50" L x 2.50" W x 1.22" H (114.0mm x 63.5mm x 30.9mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cTUVus |
| Efficiency | 88% |
| Features | PFC, Universal Input |
| Mfr | Inventus Power |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | FVA100 (100W) |
| Type | Open Frame |
