Bridgetek Pte Ltd.Singapore

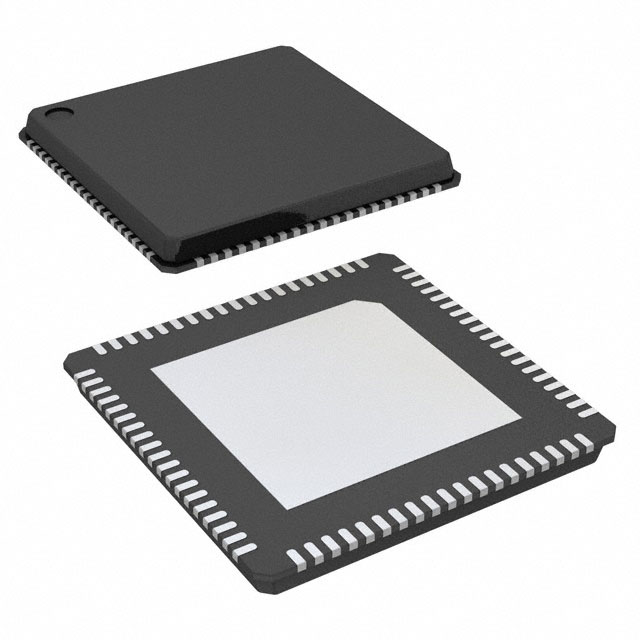

IC MCU 32BIT 256KB FLASH 76QFN
All alternatives
View full reportTechnical parameters
Key specs
Core size32 bit
Speed100 MHzMax
Flash256 kB
RAM320 kB
I/O count42
Supply voltage2.97 ~ 3.63 V
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 3.63V |
| Environment and package | |
| Core Size | 32-Bit Single-Core |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tray |
| Package / Case | 76-VFQFN Exposed Pad |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 320K x 8 |
| Supplier Device Package | 76-QFN (9x9) |
| Other | |
| Base Product Number | FT906Q |
| Connectivity | Ethernet, I²C, SPI, UART/USART, USB |
| Core Processor | FT32 |
| Data Converters | A/D 4x10b; D/A 2x10b |
| Mfr | Bridgetek Pte Ltd. |
| Number of I/O | 42 |
| Oscillator Type | Internal |
| Peripherals | POR, PWM, WDT |
| Product Status | Obsolete |
| Program Memory Type | FLASH |
| Series | FT90x |
| Speed | 100MHz |
