Infineon TechnologiesGermany

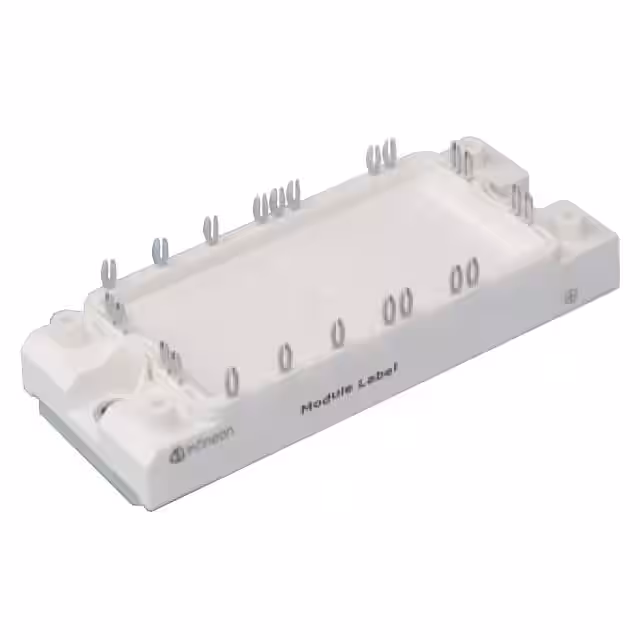

IGBT MODULE 600V 60A 160W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 1 mA |
| Current - Collector (Ic) (Max) | 60 A |
| Power - Max | 160 W |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tray |
| Package / Case | Module |
| Supplier Device Package | Module |
| Other | |
| Base Product Number | FS50R06 |
| Configuration | Full Bridge Inverter |
| IGBT Type | - |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 3.1 nF @ 25 V |
| Mfr | Infineon Technologies |
| NTC Thermistor | Yes |
| Product Status | Last Time Buy |
| Series | - |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 50A |
