Coto TechnologyUnited States
SWITCH REED SPST-NO 500MA 200V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Carry | 1.5A (AC/DC) |
| Current - Switching | 500mA (AC/DC) |
| Power - Rated | 10VA |
| Voltage - Switching AC | 200 V |
| Voltage - Switching DC | 200 V |
| Environment and package | |
| Height Above Board | 0.080" (2.03mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

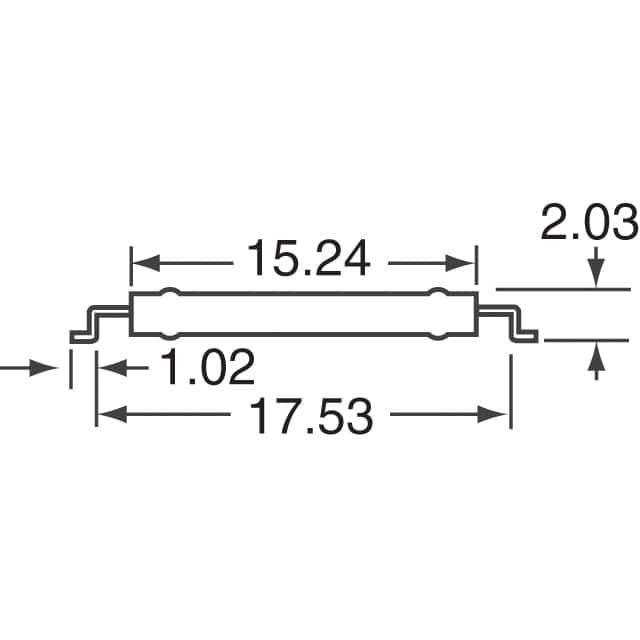

| Size - Body | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) |
| Other | |
| Capacitance | 0.3 pF |
| Circuit | SPST-NO |
| Length - Overall | 0.770" (19.56mm) |
| Mfr | Coto Technology |
| Operate Range | 15 ~ 25AT |
| Operate Time | 0.5 ms |
| Product Status | Obsolete |
| Release Range | - |
| Release Time | 0.2 ms |
| Series | FR2 |
| Termination Style | Gull Wing |
| Type | Glass Body Reed |
