FOD2200
onsemiUnited States

FOD2200

ObsoleteOptoisolators - Logic Output

OPTOISO 5KV TRI-STATE 8DIP

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - DC Forward (If) (Max)10mA
Current - Output / Channel25 mA
Number of Channels1
Voltage - Forward (Vf) (Typ)1.4V
Voltage - Isolation5000Vrms
Voltage - Supply4.5V ~ 20V
AC and DC characteristics
Propagation Delay tpLH / tpHL (Max)300ns, 300ns
Rise / Fall Time (Typ)80ns, 25ns
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C~85°C
PackageTube

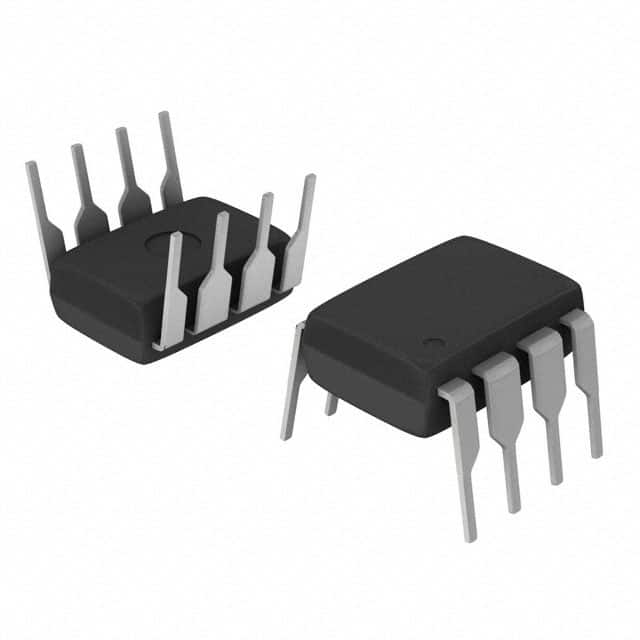

Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
Other
Base Product NumberFOD220
Common Mode Transient Immunity (Min)10kV/µs
Data Rate2.5MBd
Inputs - Side 1/Side 21/0
Input TypeDC
Mfronsemi
Output TypeTri-State
Product StatusObsolete
Series-
