Schaffner EMC Inc.Switzerland

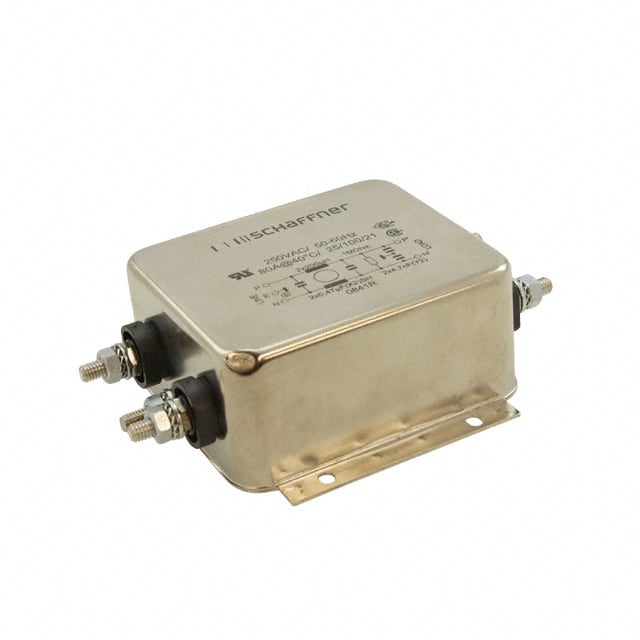

LINE FILTER 250VAC 80A CHASS MNT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current | 80 A |
| Voltage - Rated AC | 250V |
| Voltage - Rated DC | - |
| AC and DC characteristics | |
| Frequency - Operating | DC ~ 400Hz |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C~100°C |
| Package | Tray |
| Other | |
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Single Stage |
| Filter Type | Single Phase |
| Inductance | 200µH |
| Mfr | Schaffner EMC Inc. |
| Product Status | Obsolete |
| Series | FN 612 |
| Termination Style | Threaded Post (M6) |
