OptiFuseUnited States

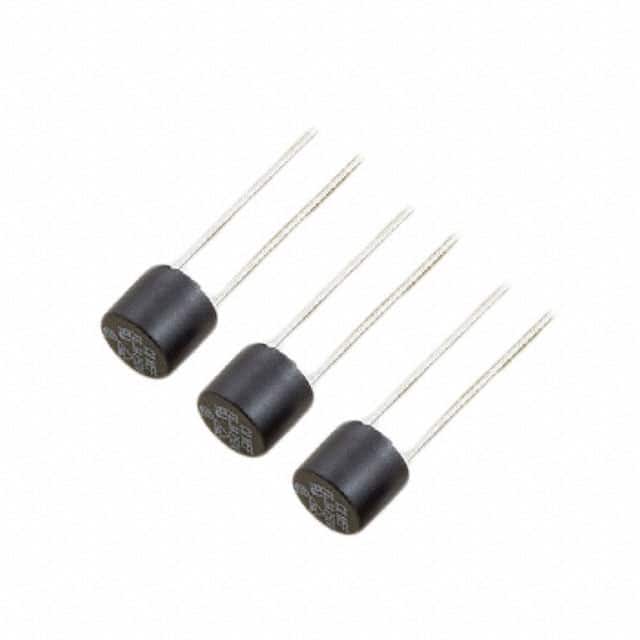

THRU HOLE FUSE,FAST ACTING 800MA
All alternatives
View full reportTechnical parameters
Key specs
Rated current800 mA
Rated voltage250 V
Response timeFast
Breaking capacity50 A
| Power | |
|---|---|
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating (Amps) | 800 mA |
| Voltage Rating - AC | 250 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Package / Case | Radial, Can, Vertical |
| Size / Dimension | 0.335" Dia x 0.327" H (8.50mm x 8.30mm) |
| Other | |
| Approval Agency | CSA, cULus, UL |
| Base Product Number | FMR |
| Color | - |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.069 |
| Mfr | OptiFuse |
| Product Status | Active |
| Response Time | Fast Blow |
| Series | FMR |
