View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Cable Impedance | 50 Ohms |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Overall Impedance | 50 Ohms |
| Environment and package | |
| 1st Connector Mounting Feature | - |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Mounting Feature | - |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65°C ~ 165°C |
| Other | |

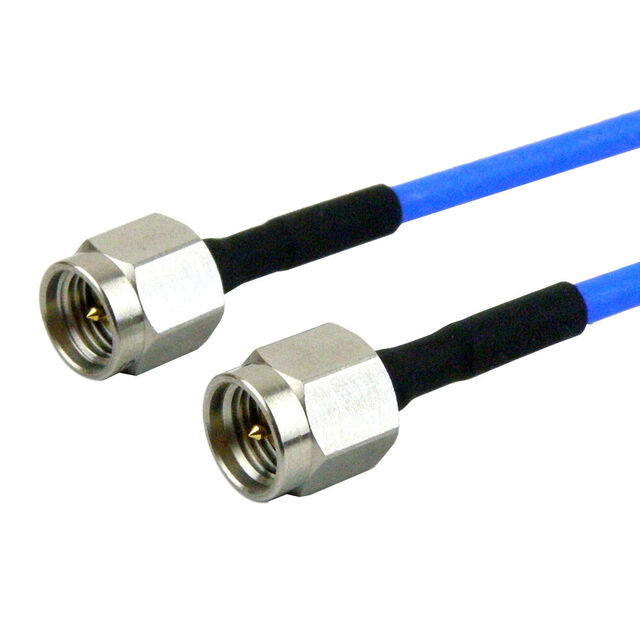

| 1st Connector | SMA Plug |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Contact Gender | Male |
| Cable Type | - |
| Color | Blue |
| Features | - |
| Ingress Protection | - |
| Length | 36.00" (914.40mm) |
| Manufacturer | Fairview Microwave |
| Packaging | Bulk |
| Part Status | Active |
| Series | - |
| Style | SMA to SMA |
