SMD SensorsGermany

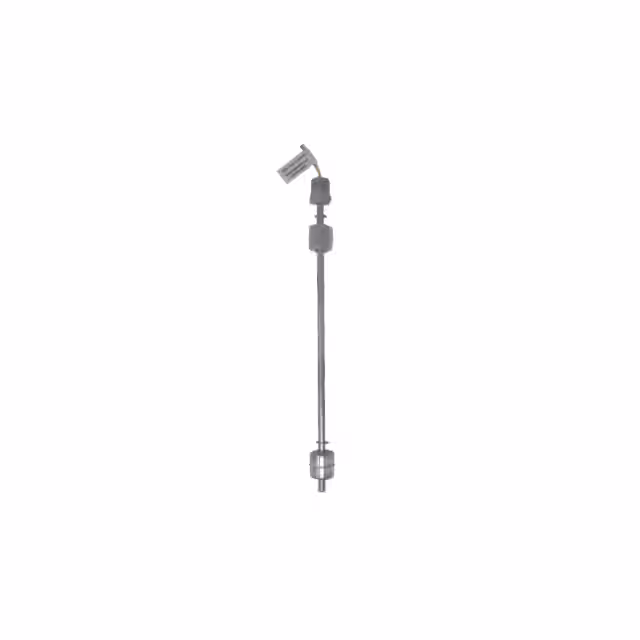

DUAL SWITCH 8" LONG 1/2" NPT,INT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current | 500 mA |
| Voltage Rating | 120VDC, 250VAC |
| Environment and package | |
| Mounting Type | Male 1/2" (12.7mm) NPT |
| Operating Temperature | 125°C |
| Package | Box |
| Other | |
| Material - Housing & Prism | 316 Stainless Steel |
| Mfr | SMD Sensors |
| Minimum Liquid Specific Gravity | 0.5 |
| Output Configuration | SPST-NC, SPST-NC |
| Output Type | Switch (2) (Dual Float) |
| Product Status | Active |
| Series | FM10-SMDX-XXXX |
| Switch Actuation Level | 1.25", 6.75" (31.75mm, 171.45mm) |
| Type | Liquid |
