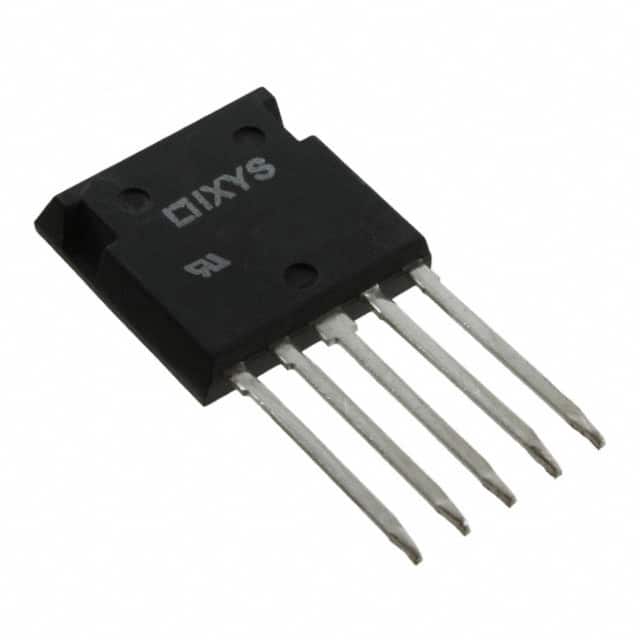

IGBT H BRIDGE 600V 40A I4PAK5
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 600 µA |
| Current - Collector (Ic) (Max) | 40 A |
| Power - Max | 125 W |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Bulk |
| Package / Case | i4-Pac™-5 |
| Supplier Device Package | ISOPLUS i4-PAC™ |
| Other | |
| Base Product Number | FII40 |
| Configuration | Half Bridge |
| IGBT Type | NPT |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 1.6 nF @ 25 V |
| Mfr | IXYS |
| NTC Thermistor | No |
| Product Status | Obsolete |
| Series | - |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 25A |
