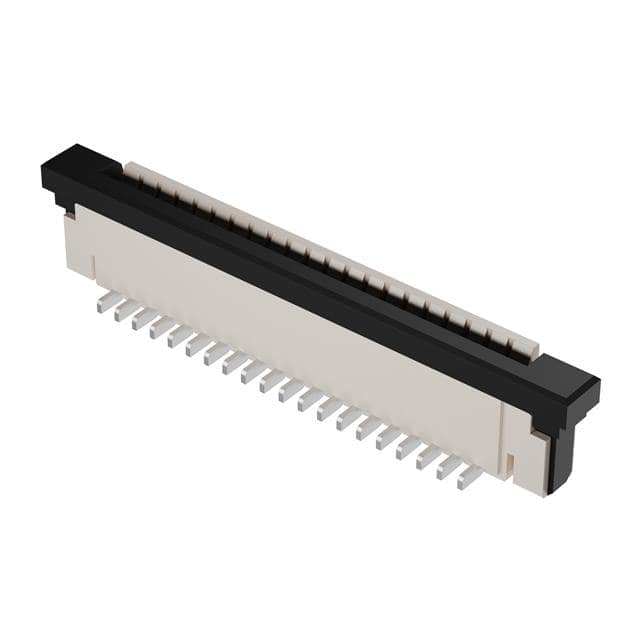

FFC3A20-28-G
GCTUnited Kingdom

FFC3A20-28-G

ActiveFFC, FPC (Flat Flexible) Connector Assemblies

28W, 1MM FFC CON, VERT, H5.5MM,

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Positions28
Pitch1 mm
Current rating1 AMax
Power
Current Rating (Amps)1A
Voltage Rating125V
Environment and package
Height Above Board0.217" (5.50mm)
Mounting TypeSurface Mount
Operating Temperature-40°C~85°C
PackageTape & Reel (TR)
Other
Actuator ColorBrown
Actuator MaterialPolyphenylene Sulfide (PPS)
Cable End TypeStraight
Connector/Contact TypeContacts, Vertical - 1 Sided
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialPhosphor Bronze
FeaturesZero Insertion Force (ZIF)
FFC, FCB Thickness0.30mm
Flat Flex TypeFFC, FPC
Housing ColorNatural
Housing MaterialLiquid Crystal Polymer (LCP)
Locking FeatureSlide Lock
Material Flammability RatingUL94 V-0
Mating Cycles20
MfrGCT
Number of Positions28
Pitch0.039" (1.00mm)
Product StatusActive
SeriesFFC3A20
TerminationSolder
