P-DUKE Technology, Inc.Taiwan, China

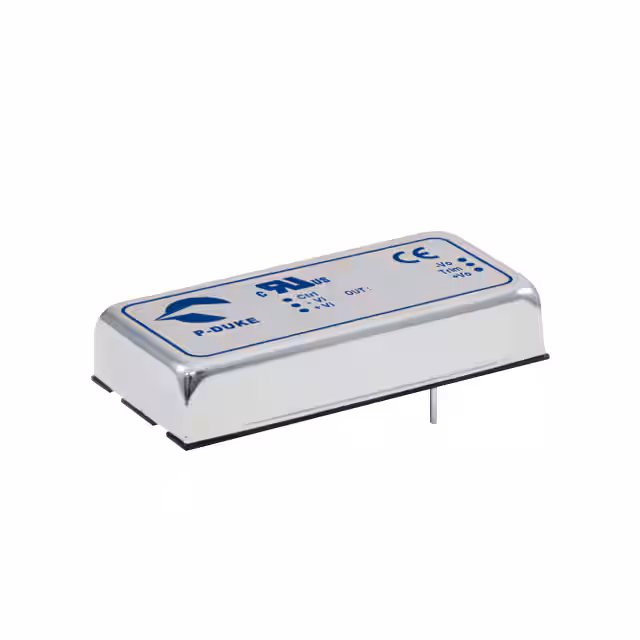

DC DC CONVERTER 5V 20W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage9 ~ 36 V
Output voltage5 V
Output current4 AMax
Power20 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 4A |
| Power (Watts) | 20 W |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 9V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C(WithDerating) |
| Package | Tube |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus |
| Base Product Number | FED20 |
| Control Features | Enable, Active High |
| Efficiency | 88% |
| Features | Adjustable Output, Remote On/Off |
| Mfr | P-DUKE Technology, Inc. |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | FED20W (20W) |
| Type | Isolated Module |
