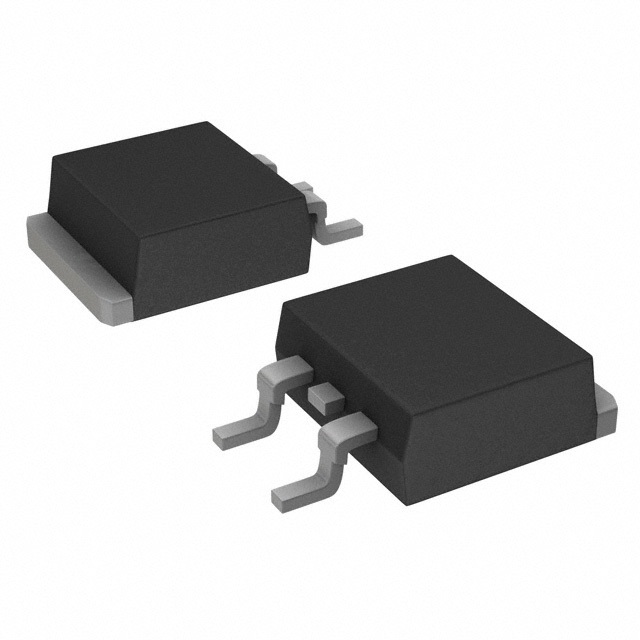

MOSFET N-CH 75V 19A TO263AB
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage75 V
Continuous drain current19 A
On-resistance4.5 mΩMax · 80A
Gate threshold voltage4 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 19A (Ta) |
| Drain to Source Voltage (Vdss) | 75 V |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Power Dissipation (Max) | 310W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK (TO-263) |
| Other | |
| Base Product Number | FDB045 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 138 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6600 pF @ 25 V |
| Mfr | onsemi |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 80A, 10V |
| Series | Automotive, AEC-Q101, PowerTrench® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
