OhmiteUnited States

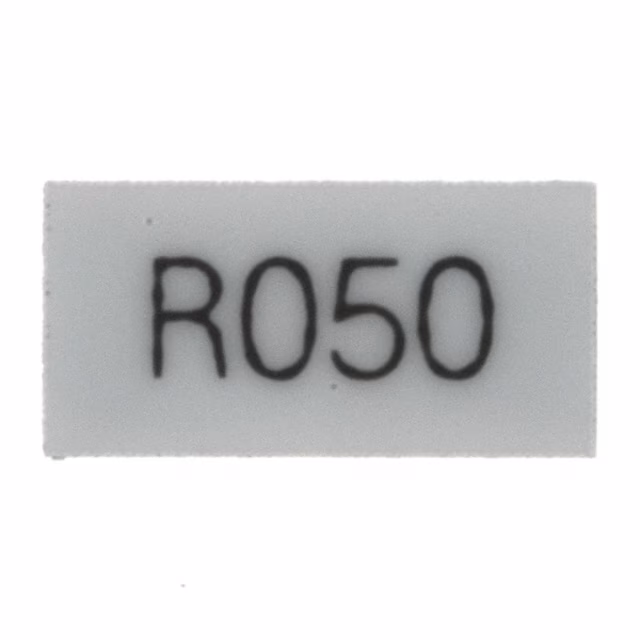

RES 0.05 OHM 2W 2512 WIDE
All alternatives
View full reportTechnical parameters
Key specs
Resistance50 mΩ
Tolerance1 %
Power2 W
Temperature coefficient50 ppm/°C
| Power | |
|---|---|
| Power (Watts) | 2W |
| Environment and package | |

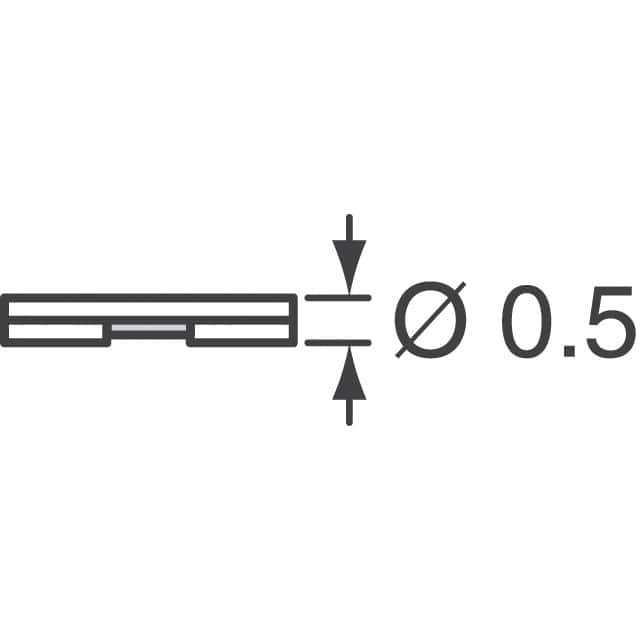

| Height - Seated (Max) | 0.028" (0.70mm) |
| Operating Temperature | -55°C~155°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Size / Dimension | 0.122" L x 0.248" W (3.10mm x 6.30mm) |
| Supplier Device Package | 6432 |
| Temperature Coefficient | ±50ppm/°C |
| Other | |
| Composition | Metal Foil |
| Failure Rate | - |
| Features | Current Sense, Moisture Resistant |
| Mfr | Ohmite |
| Number of Terminations | 2 |
| Product Status | Active |
| Resistance | 50 mOhms |
| Series | FCSL |
| Tolerance | ±1% |
Documents
No documents are linked to this part yet.
