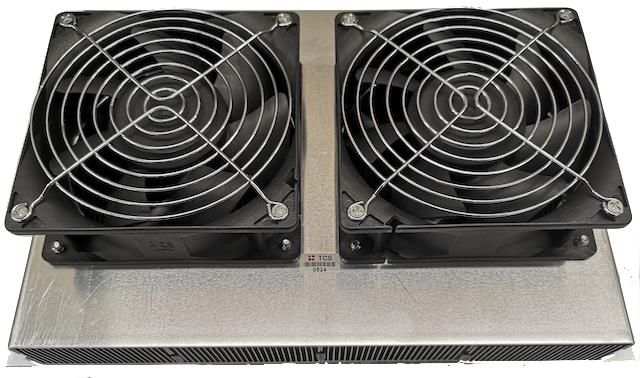

FC-250-50
Thermoelectric Conversion Systems LtdUnited Kingdom

FC-250-50

ActiveThermoelectric, Peltier Assemblies

250W THERMOELEC ASSY AIR-LIQ

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current18 A
Power - Cooling250 W
Power - Input450 W
Voltage24 V
Environment and package
Dimensions - Overall280mm L x 200mm W x 98mm H
Operating Temperature-40°C ~ 70°C
PackageBox
Other
Base Product NumberFC-250
Fan LocationCold Side
Heat Transfer TypeLiquid to Air
MfrThermoelectric Conversion Systems Ltd
Product StatusActive
SeriesFC
Weight7.7 lbs (3.5 kg)

Documents

No documents are linked to this part yet.
