TXGA(特思嘉)China

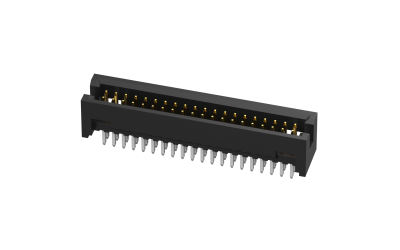

The hook horn adopts an ear buckle structure design, which can increase the retention force of the connector and ensure reliable interconnection of the connector in vibration and impact. The Jianniu connector is designed with no buckles on both sides, effectively reducing the PCB board space requirement of the connector, suitable for compact circuit design.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Electrical / Current(Max) | 1A |
| Electrical / Voltage(Max) | 250V |
| Electrical / Withstanding Voltage | 500V AC r.m.s |
| Environment and package | |
| Compliance / REACH (EU REACH Regulation) | Does not contain REACH SVHC (1907/2006/EC) |
| Compliance / ROHS (EU ROHS Directive) | Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2) |
| Electrical / Operating Temperature Range | -40ºC~+105ºC |
| Mechanical / Mounting Style | Through hole |
| Other | |
| Category / Colour | Black |
| Category / Number of Positions | 80Circuits |
| Category / Orientation | Vertical(180°) |
| Category / Pitch | 1.27mm |
| Category / Product Catalog | Connectors |
| Category / Product Category | Box Header |
| Category / Product System | Box Header/IDC |
| Category / Row Option | Dual row |
| Category / Style | Socket |
| Compliance / ELV (EU ELV Directive) | Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements |
| Electrical / Contact Resistance | 20 mΩ Max |
| Electrical / Insulation Resistance | 1000 MΩ Min |
| Material / Flammability Rating | UL94 V-0 |
| Material / Material-Contact | Brass |
| Material / Material-Resin | PA9T |
| Material / Plating | Gold plated |
| Material / Plating Thickness | 0.025μm |
| Packaging / Packaging | Tray |
