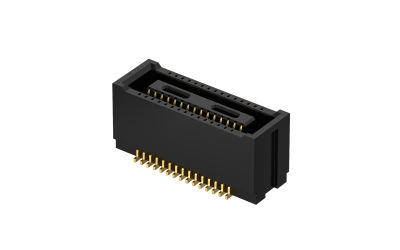

It can achieve efficient data transmission between two PCB boards, providing safer and more stable transmission performance in harsh environments.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Electrical / Current(Max) | 0.3A |
| Electrical / Voltage(Max) | 30V |
| Electrical / Withstanding Voltage | 100V AC r.m.s |
| Environment and package | |
| Category / Height(mm) | H2.9 |
| Compliance / REACH (EU REACH Regulation) | Does not contain REACH SVHC (1907/2006/EC) |
| Compliance / ROHS (EU ROHS Directive) | Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2) |
| Electrical / Operating Temperature Range | -40ºC~+85ºC |
| Mechanical / Mounting Style | SMT |
| Other | |
| Category / Colour | Black |
| Category / Gender | Female |
| Category / Number of Positions | 20Circuits |
| Category / Orientation | Vertical(180°) |
| Category / Pitch | 0.4mm |
| Category / Product Catalog | Connectors |
| Category / Product System | Board to Board Connector |
| Category / Row Option | Dual row |
| Category / Style | Socket |
| Compliance / ELV (EU ELV Directive) | Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements |
| Electrical / Contact Resistance | 90 mΩ Max |
| Electrical / Data Rate | 20Gbps |
| Electrical / Insulation Resistance | 50 MΩ Min |
| Material / Flammability Rating | UL94 V-0 |
| Material / Material-Contact | Copper alloy |
| Material / Material-Resin | LCP |
| Material / Plating | Gold plated |
| Material / Plating Thickness | 0.05μm |
| Mechanical / Durability (Mating Cycles Max.) | 30 |
| Packaging / Packaging | Reel |
