QualtekUnited States

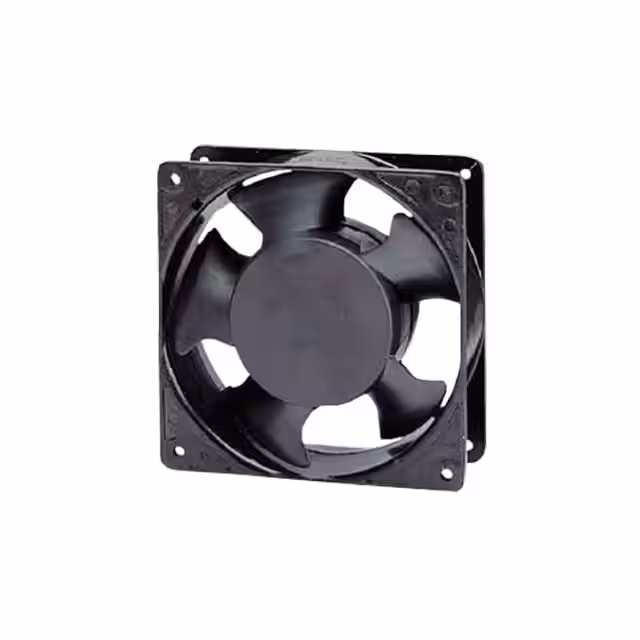

FAN AXIAL 119.5X38.5MM 115VAC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.080A |
| Power (Watts) | 6.60W |
| Voltage Range | - |
| Voltage - Rated | 115VAC |
| AC and DC characteristics | |
| Noise | 30.5dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | 14~158°F(-10~70°C) |
| Package | Bulk |
| Size / Dimension | Square - 119.5mm L x 119.5mm H |
| Other | |
| Air Flow | 53.5 CFM (1.50m³/min) |
| Approval Agency | CE, cURus, TUV |
| Base Product Number | FAA1-12038 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Mfr | Qualtek |
| Product Status | Active |
| RPM | 1700 RPM |
| Series | FAA1-12038 |
| Static Pressure | 0.060 in H2O (14.9 Pa) |
| Termination | 2 Wire Leads |
| Weight | 1.2 lbs (544.3 g) |
| Width | 38.50mm |
