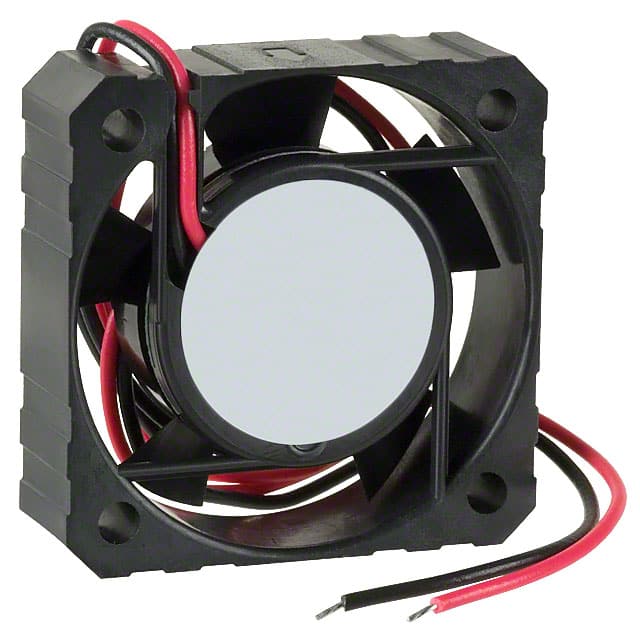

FAN AXIAL 41X12.2MM 24VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.040A |
| Power (Watts) | 960 mW |
| Voltage Range | 20.4 ~ 26.4VDC |
| Voltage - Rated | 24VDC |
| AC and DC characteristics | |
| Noise | 23.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | 14~140°F(-10~60°C) |
| Package | Bulk |
| Size / Dimension | Square - 41mm L x 41mm H |
| Other | |
| Air Flow | 5.3 CFM (0.148m³/min) |
| Approval Agency | - |
| Base Product Number | F412R |
| Bearing Type | 1 Ball/1 Sleeve |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Acrylic Butadiene Styrene (ABS), Polybutylene Terephthalate (PBT) |
| Material - Frame | Acrylic Butadiene Styrene (ABS), Polybutylene Terephthalate (PBT) |
| Mfr | Nidec Copal Electronics |
| Product Status | Obsolete |
| RPM | 5400 RPM |
| Series | F412R |
| Static Pressure | 0.102 in H2O (25.5 Pa) |
| Termination | 2 Wire Leads |
| Weight | 0.044 lb (19.96 g) |
| Width | 12.20mm |
