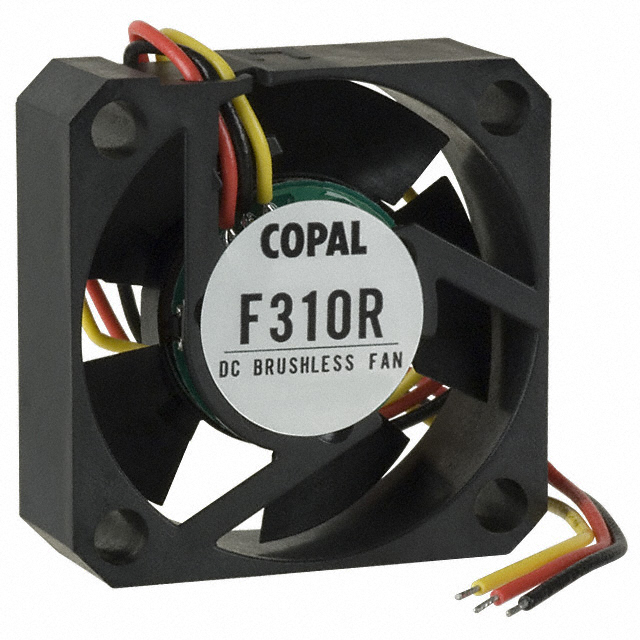

FAN AXIAL 30X10MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.040A |
| Power (Watts) | 480 mW |
| Voltage Range | 10.2 ~ 13.8VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 17.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Package | Bulk |
| Size / Dimension | Square - 30mm L x 30mm H |
| Other | |
| Air Flow | 3.2 CFM (0.090m³/min) |
| Approval Agency | - |
| Base Product Number | F310R |
| Bearing Type | 1 Ball/1 Sleeve |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Ingress Protection | - |
| Material - Blade | Acrylic Butadiene Styrene (ABS), Polybutylene Terephthalate (PBT) |
| Material - Frame | Acrylic Butadiene Styrene (ABS), Polybutylene Terephthalate (PBT) |
| Mfr | Nidec Components Corporation |
| Product Status | Obsolete |
| RPM | 7000 RPM |
| Series | F310RF |
| Static Pressure | 0.092 in H2O (23.0 Pa) |
| Termination | 3 Wire Leads |
| Weight | 0.018 lb (8.16 g) |
| Width | 10.00mm |
