IC RF SWITCH SP5T 8GHZ 24QFN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 2.7V ~ 5.5V |
| AC and DC characteristics | |
| Frequency Range | 50MHz ~ 8GHz |
| Impedance | 50Ohm |
| Test Frequency | 4GHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~105°C |
| Package | Tray |

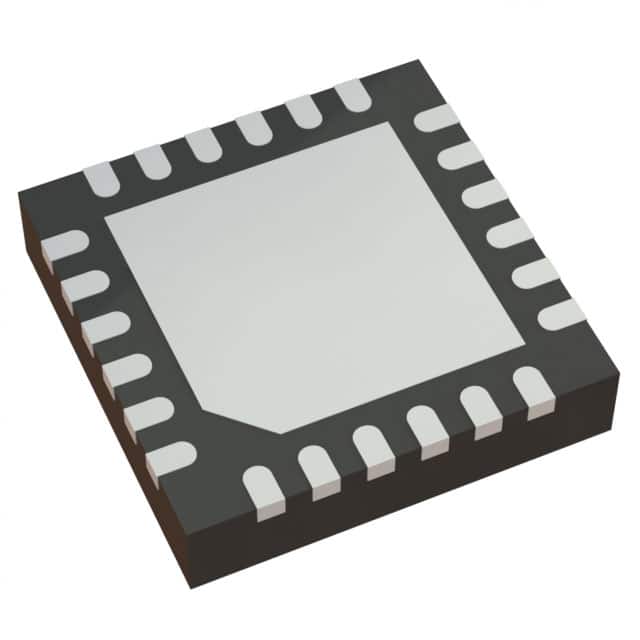

| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-VFQFPN (4x4) |
| Other | |
| Base Product Number | F2915 |
| Circuit | SP5T |
| Features | - |
| IIP3 | 60dBm |
| Insertion Loss | 1.6dB |
| Isolation | 50dB |
| Mfr | Renesas Electronics America Inc |
| P1dB | - |
| Product Status | Active |
| RF Type | - |
| Series | - |
| Topology | Absorptive |
