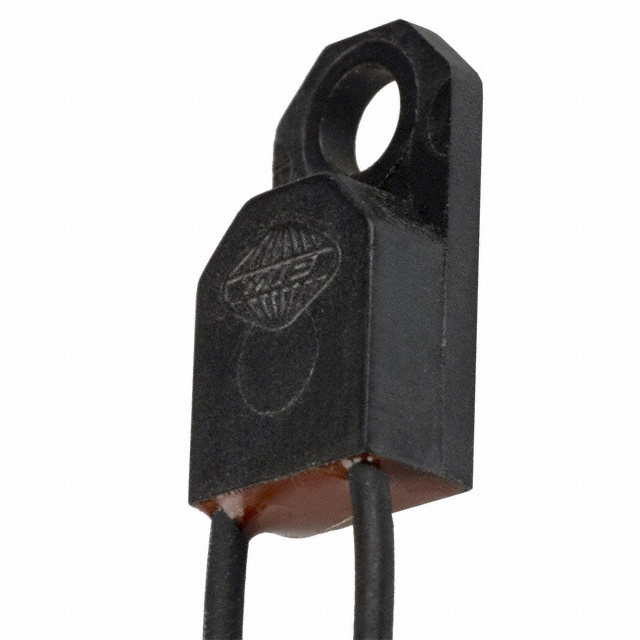

F20B10005ACFA06E
CanthermCanada

F20B10005ACFA06E

ActiveThermostats - Mechanical

THERMOSTAT 100DEG C SPST-NO WIRE

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating - AC1.6A (250V)
Current Rating - DC-
Environment and package
Mounting TypeThrough Hole
PackageBulk
Package / CasePotted - Wire Leads
Reset Temperature158°F (70°C)
Switching Temperature212°F (100°C)
Other
CircuitSPST-NO
MfrCantherm
Product StatusActive
SeriesF20
Switching Cycles7K
Termination StyleWire Leads - 6" (152.4mm)
Tolerance±9°F (±5°C)

Documents

No documents are linked to this part yet.
