CanthermCanada

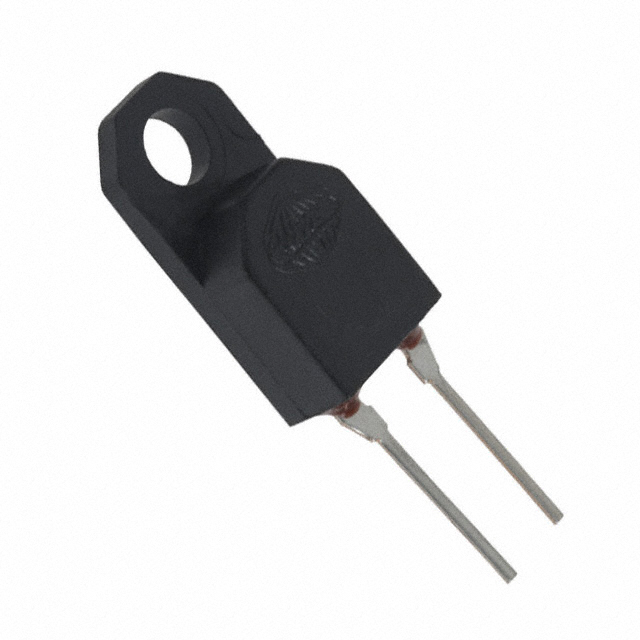

THERMOSTAT 125DEG C SPST-NC 2SIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating - AC | 1.6A (250V) |
| Current Rating - DC | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Package | Tube |
| Package / Case | 2-SIP, Potted |
| Reset Temperature | 203°F (95°C) |
| Switching Temperature | 257°F (125°C) |
| Other | |
| Circuit | SPST-NC |
| Mfr | Cantherm |
| Product Status | Active |
| Series | F20 |
| Switching Cycles | 7K |
| Termination Style | PC Pins |
| Tolerance | ±9°F (±5°C) |
Documents
No documents are linked to this part yet.
