F10007KW

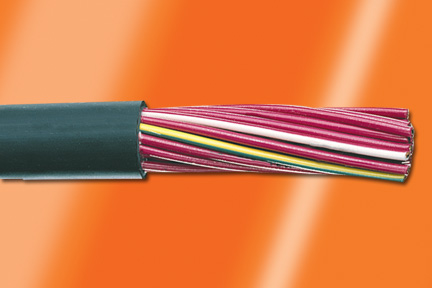

ActiveSeries F 10 AWG 7Conductor continuous flex control cable offers industry-leading mechanical and electrical performance for high-flex cable track applications.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| Environment and package | |
| 1) Temperature Range | -40 to 90°C(static), -5 to 90°C (dynamic) |
| Other | |
| 1) Component 1 | 7 X 1 COND |
| (1) Print | ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND INVERTED |
| 1) UL | a) Component 1 |
| 2) Bend Radius | 6X Cable Diameter(static), 8X Cable Diameter(dynamic) |
| 2) Cable Assembly | 7 Components Cabled |
| 2) Capacitance | 33 pF/ft @1 kHz, Nominal Conductor to Conductor |
| (2) Color Code | Alpha Wire Color Code KX |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) Inductance | 0.16 μH/ft, Nominal |
| 3) Other | Conductors ASTM Class K |
| 3) Pull Tension | 577 Lbs, Maximum |
| 4) CE | EU Low Voltage Directive 2014/35/EU |
| 4) Conductor DCR | 1.04 Ω/1000ft @20°C, Nominal |
| 4) Sunlight Resistance | Yes |
| a) Color(s) | BLACK |
| a) Twists | 2.1 Twists/foot (min) |
| b) Orientation | Components to be arranged from OUTSIDE LAYER to INSIDE LAYER |
| b) Overall | -40C |
| b) Print | ALPHA WIRE-* P/N F10007KW 7C 10 AWG (5.32mm2) THWN-2 SERIES F (UL) TYPE TC-ER 90C WET/DRY 600V OIL RES I/II -40C SUN RES OR C(UL) CIC CONTROL/TC 10 AWG -40C 90C WET 90C DRY PVC/NYLON INS FT4 OR CRU AWM I/II A/B 90C 600V FT4 CE ROHS (DATE CODE) (SEQ FOOTAGE) * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] |
| c) Core Wrap | REMAY Tape, 25% Overlap, Min. |
| Color | GREEN/YELLOW |
| Cond | 1 |
| C(UL) CIC CONTROL | 90°C / 600V V RMS |
| C(UL) TC | 90°C Dry / 90°C Wet / 600V V RMS |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
| TC | 90°C Dry / 90°C Wet / 600 V RMS |
| THWN-2 | 90°C Dry / 90°C Wet / 600 V RMS |
