EVQ-QXM02W
PanasonicJapan

EVQ-QXM02W

ObsoleteTactile Switches

SWITCH TACTILE SPST-NO 0.02A 15V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

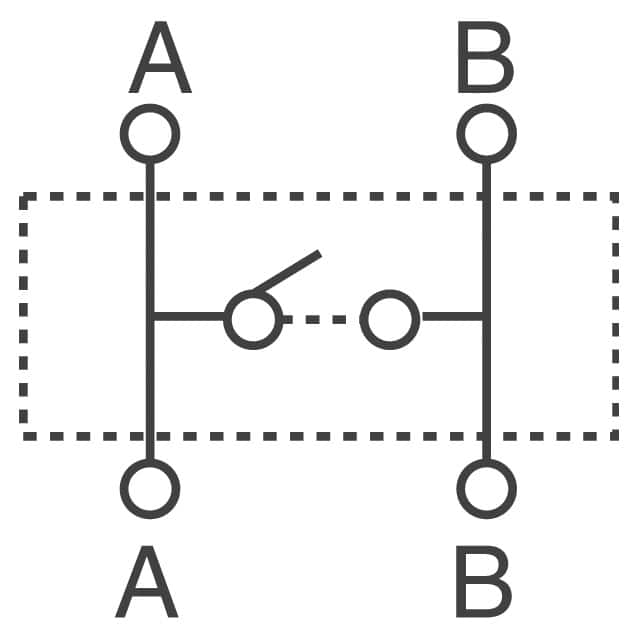

CircuitSPST-NO
Switch functionOff-Mom
Current rating20 mAMax · 15VDC
Power
Contact Rating @ Voltage0.02A @ 15VDC
Illumination Voltage (Nominal)-
Environment and package
Actuator Height off PCB, Vertical2.50mm
Mounting TypeSurface Mount
Operating Temperature-20°C~70°C
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®
Other
Actuator Length, Right Angle-
Actuator Material-
Actuator OrientationTop Actuated
Actuator TypeStandard
Base Product NumberEVQ-QX
CircuitSPST-NO
FeaturesGrounding Pin
IlluminationNon-Illuminated
Illumination Type, Color-
Ingress Protection-
Mechanical Life1,000,000 Cycles
MfrPanasonic Electronic Components
Operating Force130gf

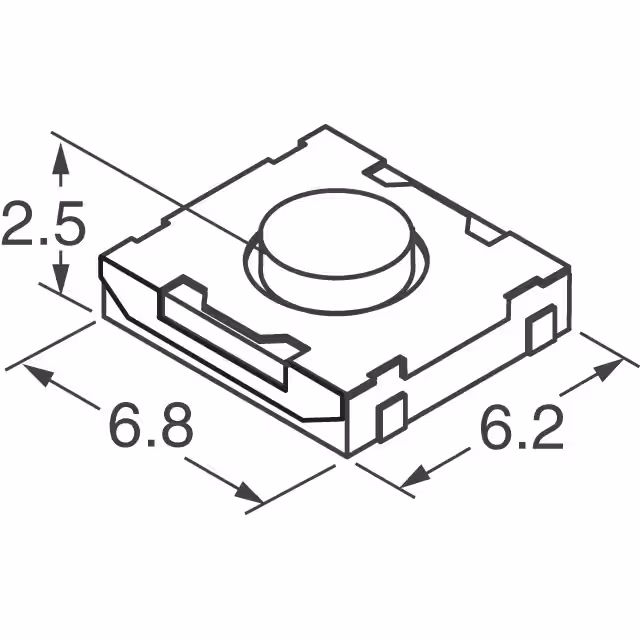

Outline6.20mm x 6.20mm
Product StatusObsolete
SeriesEVQQX
Switch FunctionOff-Mom
Switch Travel0.25mm
Termination StyleJ Lead
