PanasonicJapan
SWITCH TACTILE SPST-NO 0.05A 12V
All alternatives
View full reportTechnical parameters
Key specs

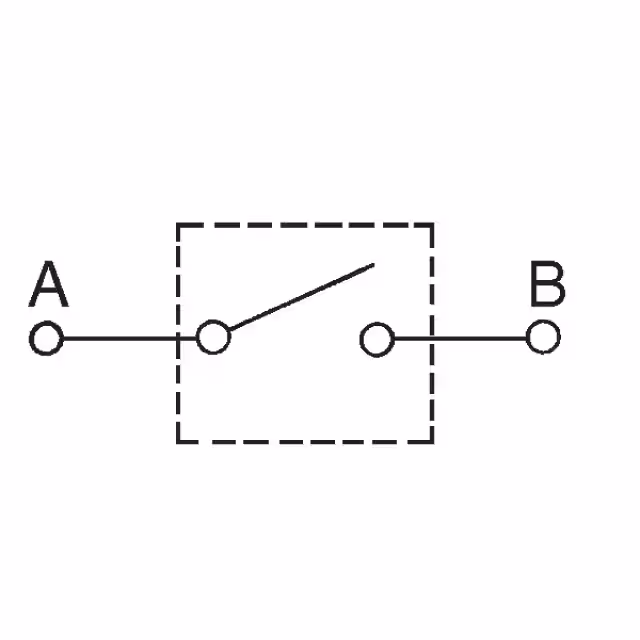

CircuitSPST-NO
Switch functionOff-Mom
Current rating50 mAMax · 12VDC
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Illumination Voltage (Nominal) | - |
| Environment and package | |
| Actuator Height off PCB, Vertical | 5.00mm |
| Mounting Type | Through Hole |
| Operating Temperature | -30°C~85°C |
| Package | Cut Tape (CT); Tape & Box (TB) |
| Other | |
| Actuator Length, Right Angle | - |
| Actuator Material | - |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Base Product Number | EVQ-PV |
| Circuit | SPST-NO |
| Features | - |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mechanical Life | 100,000 Cycles |
| Mfr | Panasonic Electronic Components |
| Operating Force | 250gf |
| Outline | 6.10mm x 6.00mm |
| Product Status | Active |
| Series | EVQPV |
| Switch Function | Off-Mom |
| Switch Travel | 1.30mm |
| Termination Style | PC Pin |
