PanasonicJapan

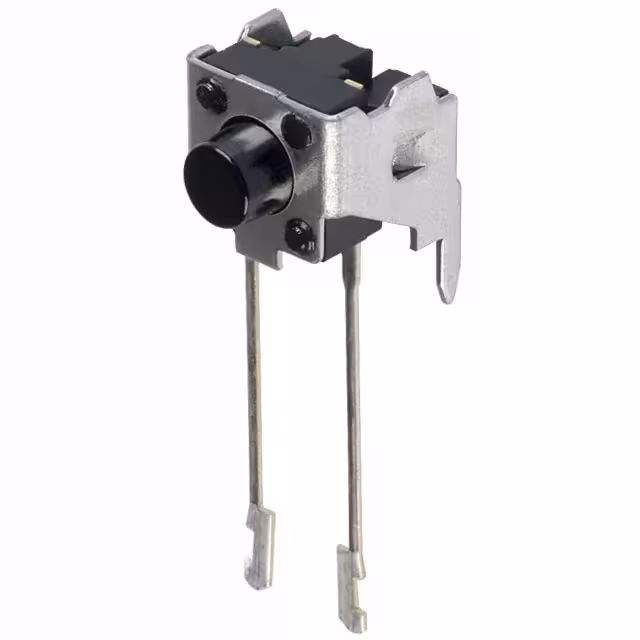

SWITCH TACTILE SPST-NO 0.02A 15V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST-NO
Switch functionOff-Mom
Current rating20 mAMax · 15VDC
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Illumination Voltage (Nominal) | - |
| Environment and package | |
| Actuator Height off PCB, Vertical | - |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -20°C~70°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Other | |
| Actuator Length, Right Angle | 4.75mm |
| Actuator Material | - |
| Actuator Orientation | Side Actuated |
| Actuator Type | Standard |
| Base Product Number | EVQ-PC |
| Circuit | SPST-NO |
| Features | - |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mechanical Life | 100,000 Cycles |
| Mfr | Panasonic Electronic Components |
| Operating Force | 130gf |
| Outline | 7.50mm x 6.95mm |
| Product Status | Obsolete |
| Series | EVQPC |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination Style | PC Pin |
