PanasonicJapan
SWITCH TACTILE SPST-NO 0.02A 15V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST-NO
Switch functionOff-Mom
Current rating20 mAMax · 15VDC
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Illumination Voltage (Nominal) | - |
| Environment and package | |

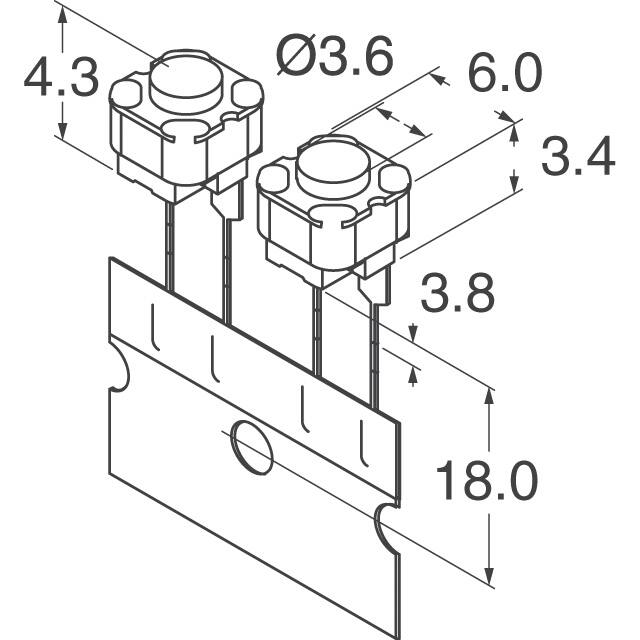

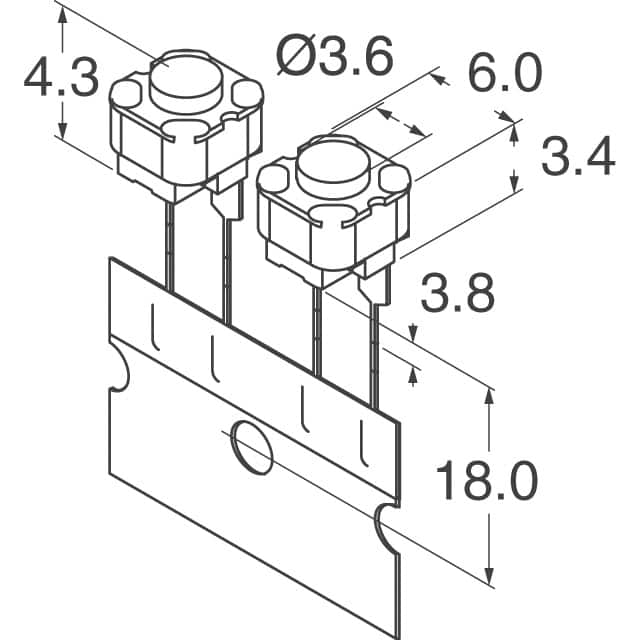

| Actuator Height off PCB, Vertical | 4.30mm |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C~70°C |
| Package | Cut Tape (CT); Tape & Box (TB) |
| Other | |
| Actuator Length, Right Angle | - |
| Actuator Material | - |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Base Product Number | EVQ-11 |

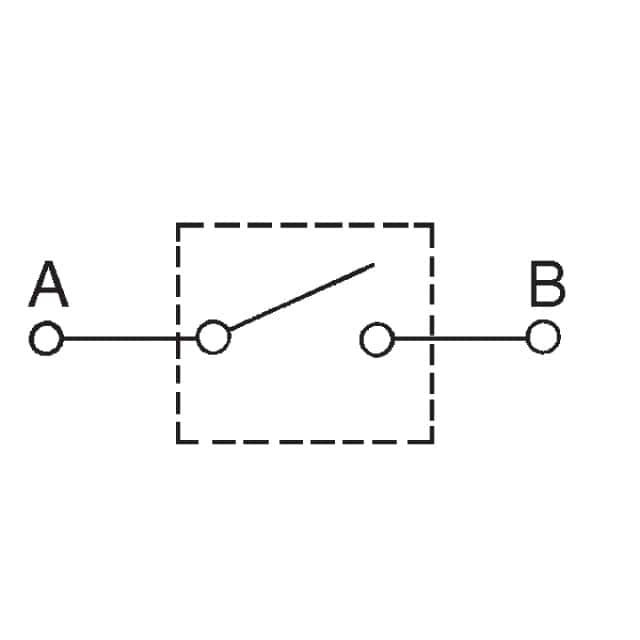

| Circuit | SPST-NO |
| Features | - |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mechanical Life | 100,000 Cycles |
| Mfr | Panasonic Electronic Components |
| Operating Force | 130gf |
| Outline | 6.00mm x 6.00mm |
| Product Status | Obsolete |
| Series | EVQ11 |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination Style | PC Pin |
