PanasonicJapan

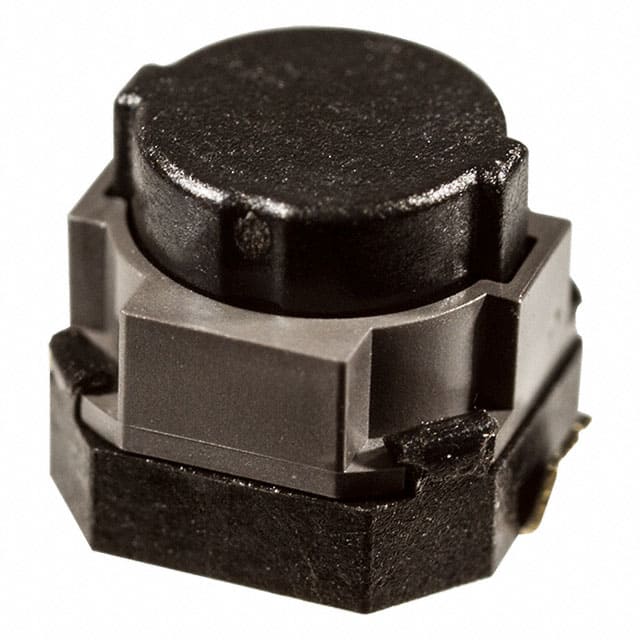

SWITCH TACTILE SPST-NO 0.05A 12V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST-NO
Switch functionOff-Mom
Current rating50 mAMax · 12VDC
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Illumination Voltage (Nominal) | - |
| Environment and package | |
| Actuator Height off PCB, Vertical | 5.00mm |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~90°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Actuator Length, Right Angle | - |
| Actuator Material | - |
| Actuator Orientation | Top Actuated |
| Actuator Type | Round Button |
| Base Product Number | EVP-AS |
| Circuit | SPST-NO |
| Features | - |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mechanical Life | 30,000 Cycles |
| Mfr | Panasonic Electronic Components |
| Operating Force | 350gf |
| Outline | 6.10mm x 6.00mm |
| Product Status | Not For New Designs |
| Series | EVPAS |
| Switch Function | Off-Mom |
| Switch Travel | 1.30mm |
| Termination Style | J Lead |
