Schaffner EMC Inc.Switzerland

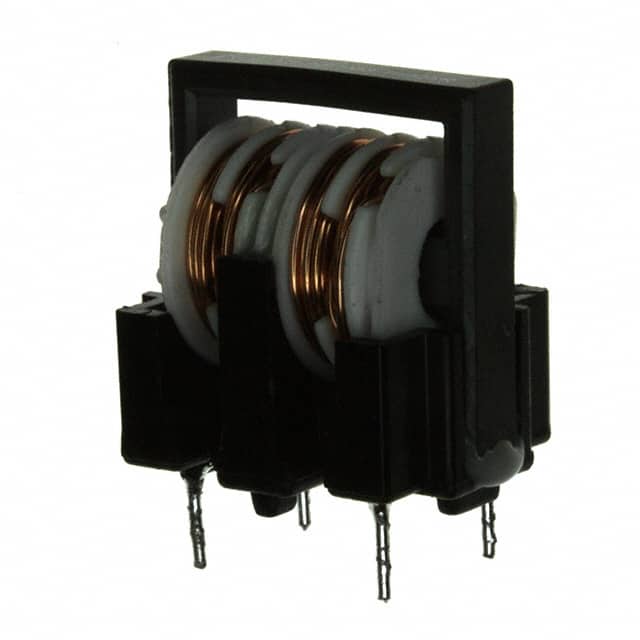

CMC 1.8MH 1.5A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating1.5 AMax
DC resistance72 mΩTyp
| Power | |
|---|---|
| Current Rating (Max) | 1.5A |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 1.8 mH @ 10 kHz |
| Environment and package | |
| Height (Max) | 1.024" (26.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C~100°C |
| Package | Bulk |
| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 0.827" L x 0.630" W (21.00mm x 16.00mm) |
| Other | |
| Approval Agency | - |
| Base Product Number | EV20-1 |
| DC Resistance (DCR) (Max) | 72mOhm (Typ) |
| Features | - |
| Filter Type | Power Line |
| Mfr | Schaffner EMC Inc. |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | EV |
Documents
No documents are linked to this part yet.
