Panduit CorpUnited States

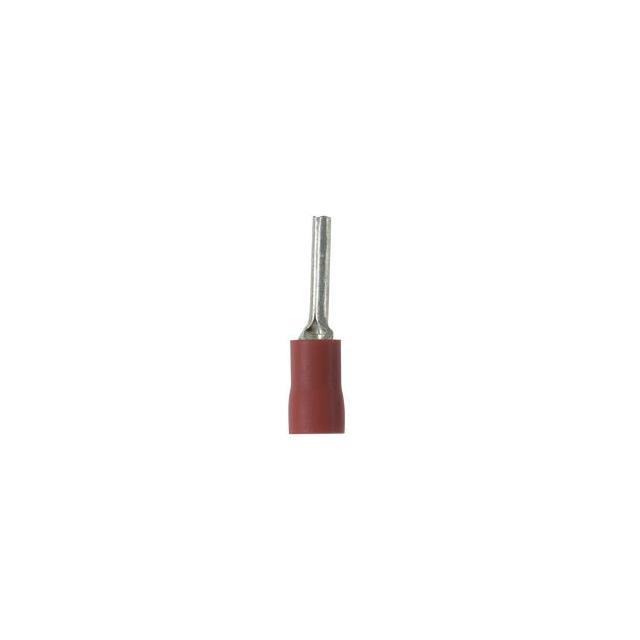

STRONGHOLD PIN TERMINAL, VINYL I
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Bulk |
| Other | |
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.145" (3.68mm) |
| Diameter - Barrel OD | - |
| Features | - |
| Insulation | Insulated |
| Insulation Diameter | 0.145" (3.68mm) |
| Length - Overall | 0.900" (22.86mm) |
| Length - Pin | - |
| Length - Termination | 0.390" (9.91mm) |
| Material - Insulation | Vinyl |
| Mfr | Panduit Corp |
| Pin Diameter | 0.070" (1.78mm) |
| Product Status | Obsolete |
| Series | StrongHold™ |
| Termination | Crimp |
| Wire Gauge | 18-22 AWG |
