Panduit CorpUnited States

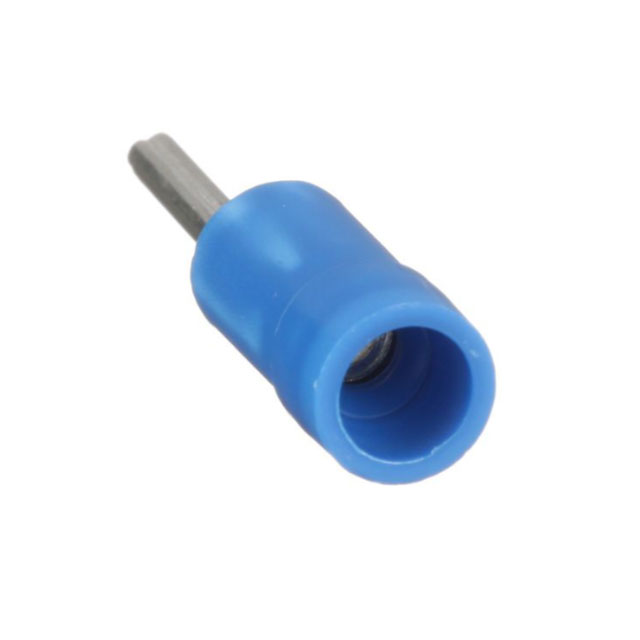

STRONGHOLD PIN TERMINAL, VINYL I
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Bulk |
| Other | |
| Base Product Number | EV14 |
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | - |
| Diameter - Barrel OD | - |
| Features | Brazed Seam |
| Insulation | Insulated |
| Insulation Diameter | 0.170" (4.32mm) |
| Length - Overall | 0.970" (24.64mm) |
| Length - Pin | 0.490" (12.45mm) |
| Length - Termination | - |
| Material - Insulation | Vinyl |
| Mfr | Panduit Corp |
| Pin Diameter | Circular - 0.070" (1.78mm) Dia |
| Product Status | Obsolete |
| Series | StrongHold™ |
| Termination | Crimp |
| Wire Gauge | 14-16 AWG |
Documents
No documents are linked to this part yet.
