Panduit CorpUnited States

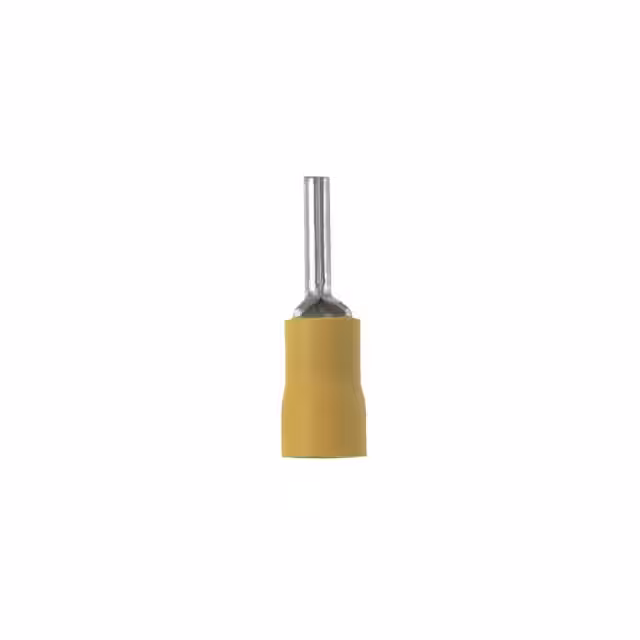

STRONGHOLD PIN TERMINAL VINYL
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Bulk |
| Other | |
| Base Product Number | EV10 |
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | - |
| Diameter - Barrel OD | - |
| Features | Brazed Seam |
| Insulation | Insulated |
| Insulation Diameter | 0.250" (6.35mm) |
| Length - Overall | 1.100" (27.94mm) |
| Length - Pin | 0.550" (13.97mm) |
| Length - Termination | - |
| Material - Insulation | Vinyl |
| Mfr | Panduit Corp |
| Pin Diameter | Circular - 0.100" (2.54mm) Dia |
| Product Status | Active |
| Series | StrongHold™ |
| Termination | Crimp |
| Wire Gauge | 10-12 AWG |
Documents
No documents are linked to this part yet.
