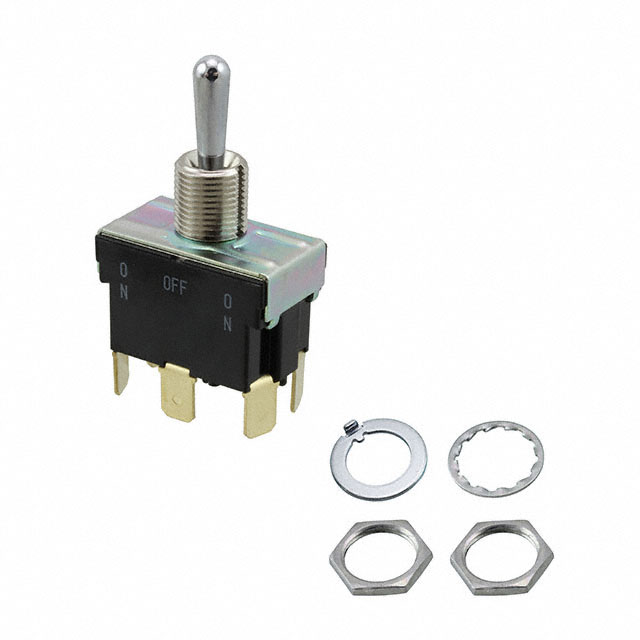

ET225N-Z
Toggle SwitchesSWITCH TOGGLE DPDT 25A 125V
All alternatives
View full reportTechnical parameters
Key specs
CircuitDPDT
Switch functionOn-On
Current rating25 AMax
Voltage rating125 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 25A (AC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - AC | 125 V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | - |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Other | |
| Actuator Length | 17.00mm |
| Actuator Material | - |
| Actuator Type | Standard Round |
| Base Product Number | ET225N |
| Bushing Thread | M12 x 1 |
| Circuit | DPDT |
| Electrical Life | 20,000 Cycles |
| Features | - |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mfr | Nidec Components Corporation |
| Packaging | Bulk |
| Part Status | Obsolete |
| Series | ET |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
