C&KUnited States

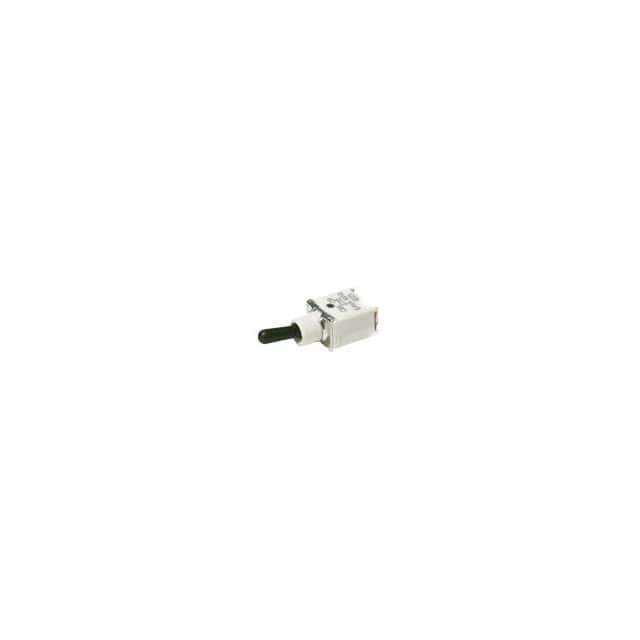

SWITCH TOGGLE SPDT 0.4VA 20V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPDT
Switch functionOn-On
Voltage rating20 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
| Environment and package | |
| Mounting Type | Through Hole, Right Angle, Vertical |
| Operating Temperature | -30°C~85°C |
| Package | Tray |
| Panel Cutout Dimensions | - |
| Other | |
| Actuator Length | 10.16mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Base Product Number | ET01 |
| Bushing Thread | Unthreaded |
| Circuit | SPDT |
| Electrical Life | 60,000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | IP57 - Dust Protected, Waterproof |
| Mfr | C&K |
| Product Status | Active |
| Series | ET |
| Switch Function | On-On |
| Termination Style | PC Pin |
