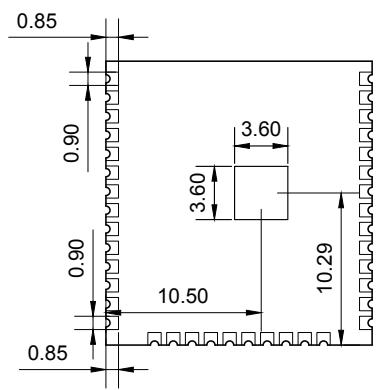

Bottom View Figure 9: Physical…
Espressif SystemsChina
ESP32-WROOM-32U
18 × 19.2 × 3.2 mmESP32-WROOM-32U is a Wi-Fi + Bluetooth + Bluetooth LE MCU module with an external antenna connector, operating voltage 3.0~3.6 V, temperature -40~85 °C, and size 18 × 19.2 × 3.2 mm.Checked against the datasheet
All alternatives
View full reportTechnical parameters
Datasheet-verified parameters
17 items| Parameter | Value and test conditions | Source |
|---|---|---|
| Package | 18 × 19.2 × 3.2 mm | |
| Operating ambient temperature | -40 ~ 85 °C | |
| RoHS | REACH/RoHS | |
| REACH | REACH/RoHS | |
| Recommended Operating Conditions: Power supply voltage | Min: 3.0 V, Typ: 3.3 V, Max: 3.6 V | |
| Absolute Maximum Ratings: Power supply voltage | Min: -0.3 V, Max: 3.6 V |
All parameters (26)
| Power | |
|---|---|
| 最大工作电压 | 3.6V |
| 最小工作电压 | 3V |
| Other | |
| AP模式 | 0 |
| FLASH | 4MB |
| FLASH容量 | 4MB |
| mesh组网 | 0 |
| Mesh组网 | 0 |
| RAM | 520KB |
| RX接收灵敏度 | -97dBm |
| STA模式 | 0 |
| TX发射功率 | 20dBm |
| USB接口 | 0 |
| WIFI直连 | 0 |
| 以太网功能 | 0 |
| 内置Zigbee功能 | 0 |
| 内置以太网PHY | 0 |
| 内置蓝牙功能 | 1 |
| 在线OTA | 0 |
| 支持USB接口 | 0 |
| 支持Zigbee | 0 |
| 支持以太网PHY | 0 |
| 支持蓝牙 | 1 |
| 最大数据速率 | 150Mbps |
| 最高传输速率 | 150Mbps |
| 集成Zigbee功能 | 0 |
| 集成蓝牙功能 | 1 |
