ERP Power, LLCUnited States

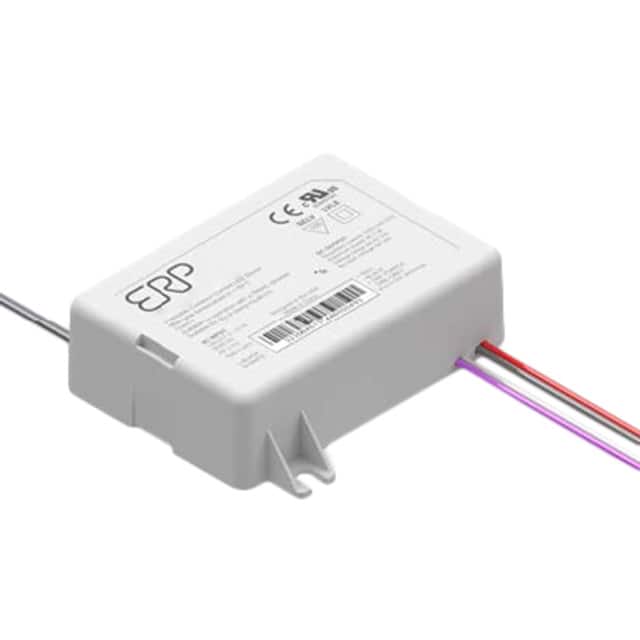

LED DRIVER CC AC/DC 28-42V 1.2A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 1.2A |
| Power (Watts) | 50 W |
| Voltage - Input (Max) | 277VAC |
| Voltage - Input (Min) | 120VAC |
| Voltage - Output | 28 ~ 42V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -30°C~90°C |
| Package | Box |
| Size / Dimension | 3.43" L x 2.36" W x 1.07" H (87.0mm x 59.9mm x 27.2mm) |
| Other | |
| Approval Agency | cUL, UL, cRUcs, FC, CE, CB |
| Base Product Number | ESP050W |
| Dimming | Analog, ELV, Triac |
| Efficiency | 87% |
| Features | OCP, OTP, SCP |
| Mfr | ERP Power, LLC |
| Number of Outputs | 1 |
| Product Status | Not For New Designs |
| Ratings | IP64, NEMA 410 |
| Series | ESP (50W) |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Weight | 0.489 lb (222 g) |
