Maxwell TechnologiesUnited States

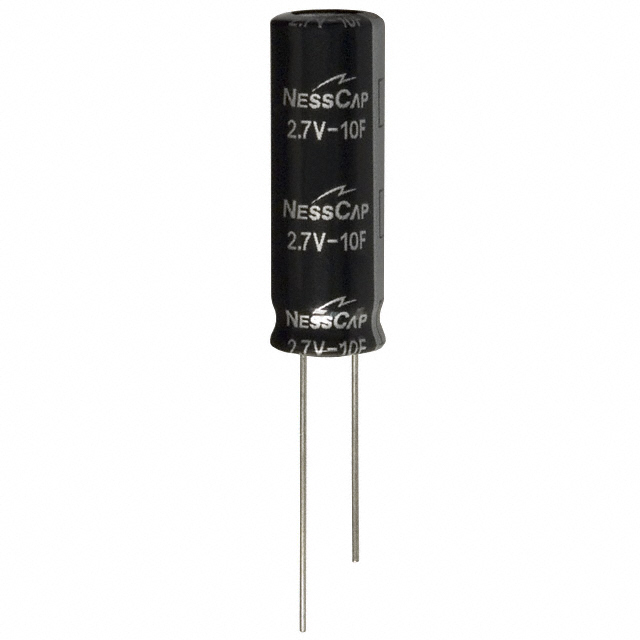

ESHSR-0010C0-002R7
Electric Double Layer Capacitors (EDLC), SupercapacitorsCAP 10F -10% +20% 2.7V T/H
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 2.7 V |
| Environment and package | |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 65°C |
| Package / Case | Radial, Can |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Other | |
| Capacitance | 10 F |
| ESR (Equivalent Series Resistance) | 26mOhm |
| Lead Spacing | 0.197" (5.00mm) |
| Manufacturer | Maxwell Technologies |
| Packaging | Bulk |
| Part Status | Obsolete |
| Series | ESHSR |
| Termination | PC Pins |
| Tolerance | -10%, +20% |
