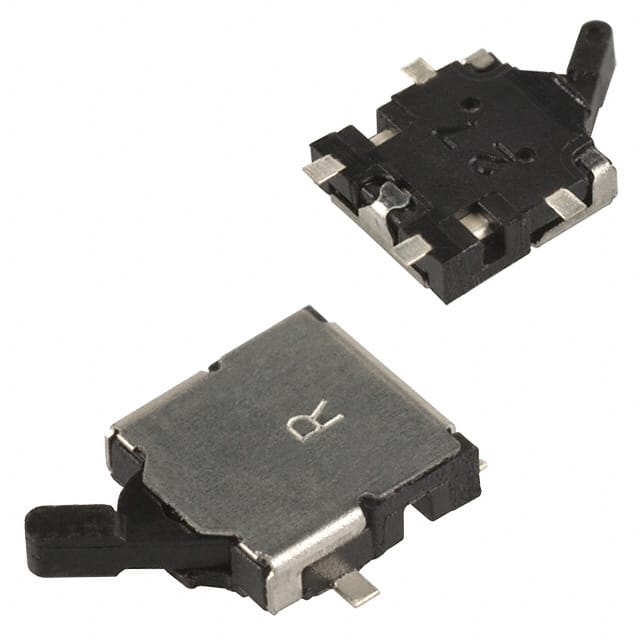

SWITCH DETECTOR SPST-NO 10MA 5V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 10mA (DC) |
| Voltage Rating - DC | 5 V |
| Environment and package | |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -10°C~60°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Actuator Type | Angled Toggle (Detector) |
| Base Product Number | ESE-18 |
| Circuit | SPST-NO |
| Differential Travel | - |
| Electrical Life | 50,000 Cycles |
| Features | - |
| Ingress Protection | - |
| Mechanical Life | 50,000 Cycles |
| Mfr | Panasonic Electronic Components |
| Operating Force | 30gf |
| Operating Position | 0.102" (2.6mm) |
| Overtravel | - |
| Pretravel | - |
| Product Status | Obsolete |
| Release Force | - |
| Series | ESE18 |
| Switch Function | Off-Mom |
| Termination Style | SMD (SMT) Tab |
