TVS DIODE 5VWM 10.4VC SOT723
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage5 V
Breakdown voltage5.4 V
Clamping voltage10.4 VMax
PolarityUnidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | - |

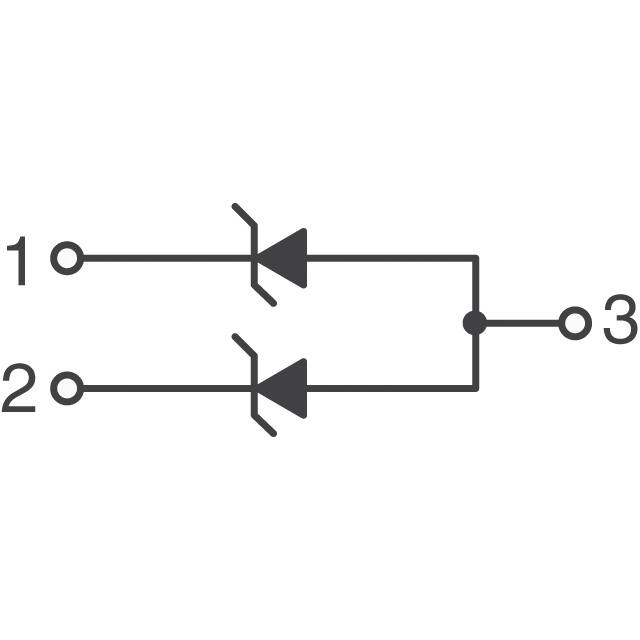

| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 5.4V |
| Voltage - Clamping (Max) @ Ipp | 10.4V |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | 0.5pF @ 1MHz, 0.25pF @ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

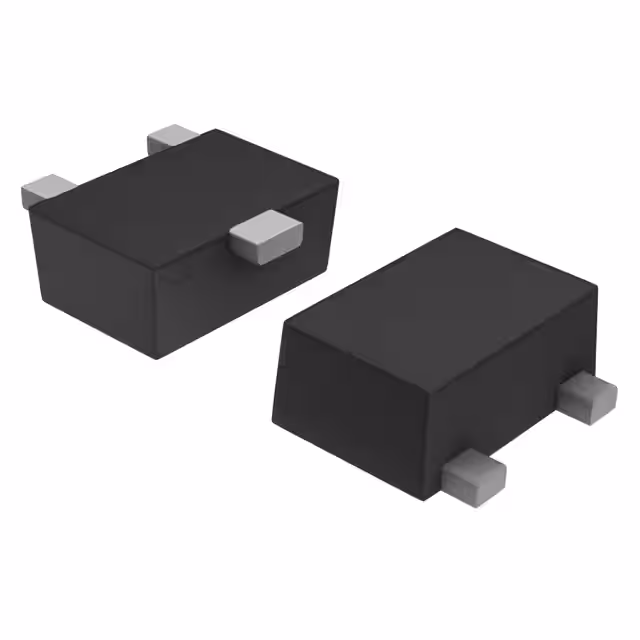

| Package / Case | SOT-723 |
| Supplier Device Package | SOT-723 |
| Other | |
| Applications | USB |
| Base Product Number | ESD7L5.0 |
| Mfr | onsemi |
| Product Status | Active |
| Series | - |
| Type | Zener |
