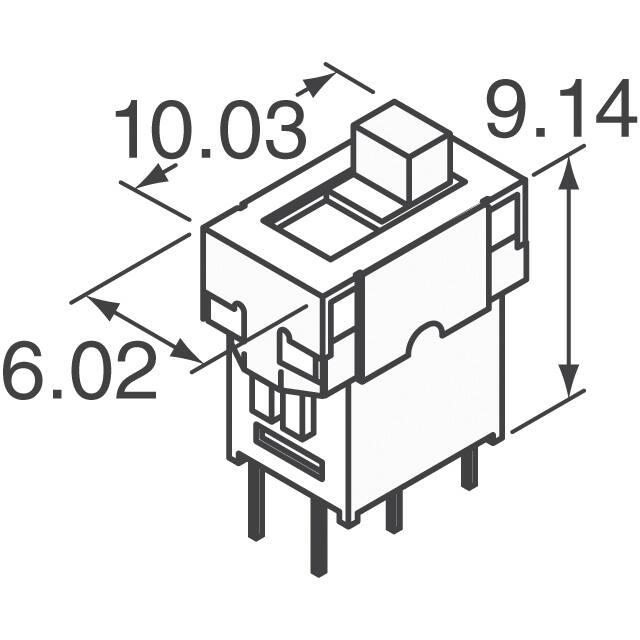

SWITCH SLIDE SPDT 0.4VA 20V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPDT
Switch functionOn-Off-On
Voltage rating20 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -30°C~85°C |
| Package | Tray |
| Other | |
| Actuator Length | 3.07mm |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Type | Standard |
| Base Product Number | ES03M |
| Circuit | SPDT |
| Contact Finish | Gold |
| Contact Material | Bronze |
| Contact Timing | Not Specified |
| Electrical Life | 40,000 Cycles |
| Features | Epoxy Sealed Terminals, IP57 |
| Mechanical Life | 40,000 Cycles |
| Mfr | C&K |
| Operating Force | - |
| Product Status | Active |
| Series | ES |
| Switch Function | On-Off-On |
| Switch Travel | 2.29mm |
| Termination Style | PC Pin |
