PanasonicJapan

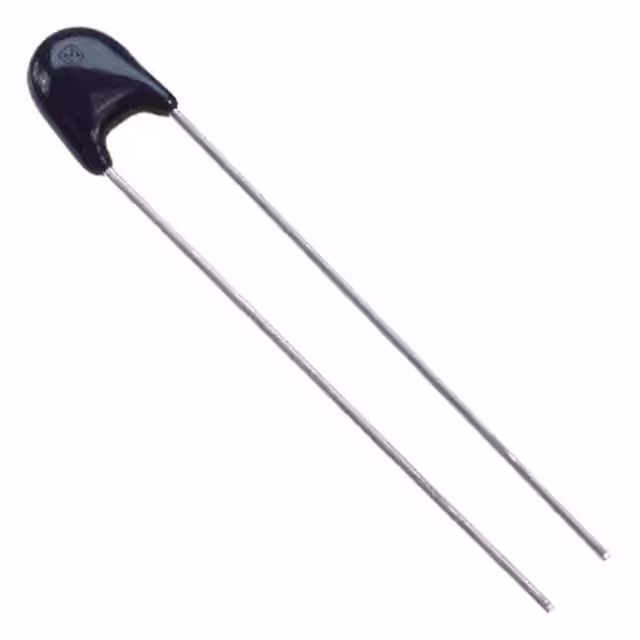

VARISTOR 470V 800A DISC 5MM
All alternatives
View full reportTechnical parameters
Key specs
Varistor voltage470 V
Max AC voltage300 VMax
Max DC voltage385 VMax
Surge current800 AMax
Energy21 JMax
| Power | |
|---|---|

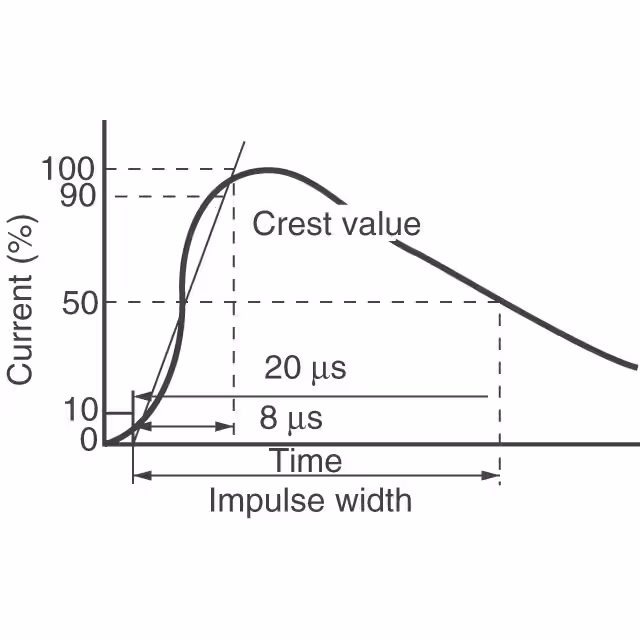

| Current - Surge | 800 A |
| Varistor Voltage (Max) | 517 V |
| Varistor Voltage (Min) | 423 V |
| Varistor Voltage (Typ) | 470 V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 60 pF @ 1 MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Bulk |

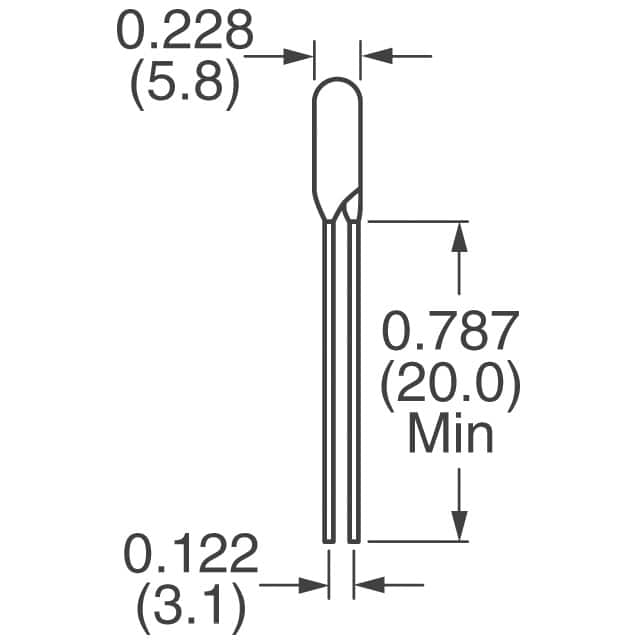

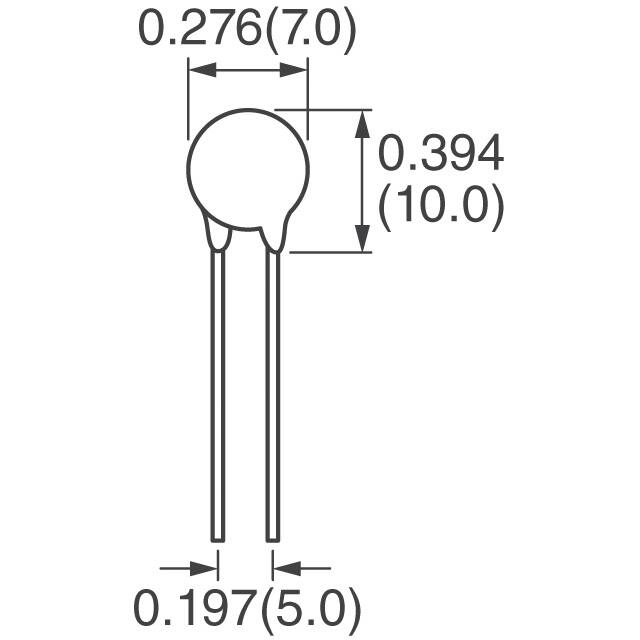

| Package / Case | Disc 7mm |
| Other | |
| Energy | 21J |
| Maximum AC Volts | 300 V |
| Maximum DC Volts | 385 V |
| Mfr | Panasonic Electronic Components |
| Number of Circuits | 1 |
| Product Status | Active |
| Series | ZNR® |
