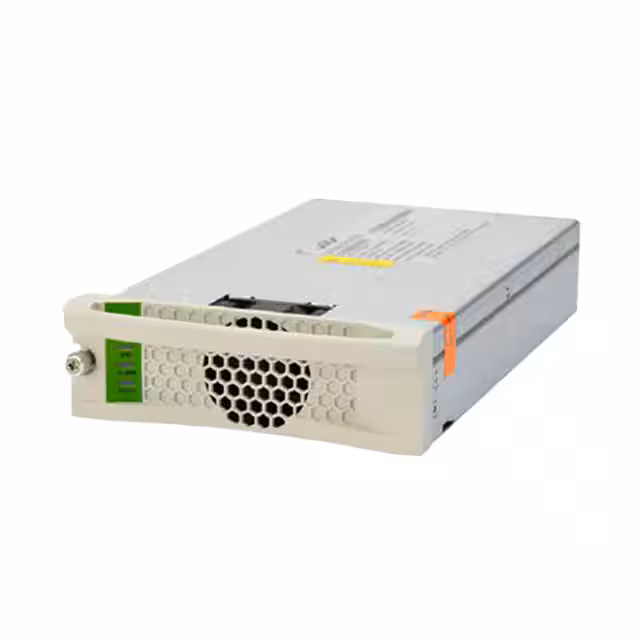

AC/DC CONVERTER 52V 1000W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 290 V
Output voltage52 V
Output current20 AMax
Power1 kWMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 20 A |
| Power (Watts) | 1000W |
| Voltage - Input | 90 ~ 290 VAC |
| Voltage - Output 1 | 52V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Rack Mount |
| Operating Temperature | -40°C~75°C(WithDerating) |
| Package | Box |
| Size / Dimension | 8.19" L x 4.57" W x 1.58" H (208.0mm x 116.5mm x 40.2mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Efficiency | 95% |
| Features | Adjustable Output, DC Input Capable, Hot Swappable, Universal Input |
| Mfr | ABB Power Electronics Inc. |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | SlimLine (1000W) |
| Type | Front End |
Documents
No documents are linked to this part yet.
