DC DC CONVERTER 0.6-4.9V 10W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.4 ~ 5.5 V
Output voltage600 mV ~ 4.9 V
Output current2 AMax
IsolationNon-isolated
| Power | |
|---|---|
| Current - Output (Max) | 2A |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.4V |
| Voltage - Output 1 | 0.6 ~ 4.9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

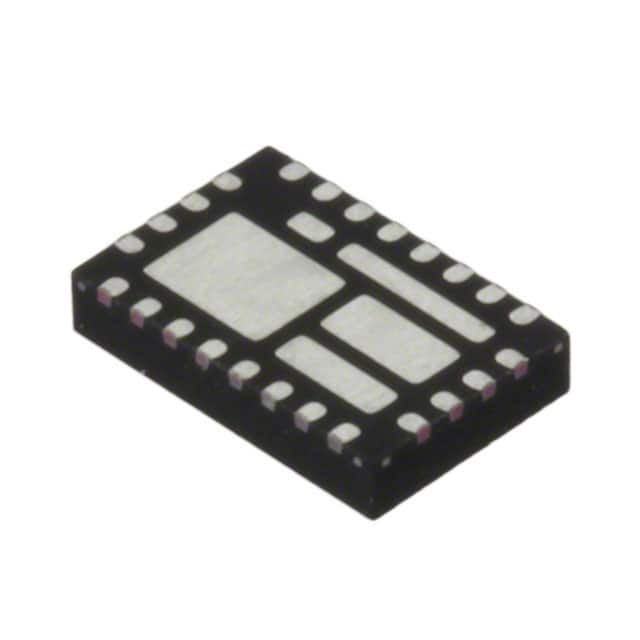

| Package / Case | 24-PowerTQFN Module |
| Size / Dimension | 0.24" L x 0.16" W x 0.04" H (6.0mm x 4.0mm x 1.1mm) |
| Supplier Device Package | 24-QFN (6x4) |
| Other | |
| Applications | ITE (Commercial) |
| Base Product Number | EN5322 |
| Control Features | Enable, Active High |
| Efficiency | 95% |
| Features | Remote On/Off, OCP, OTP, SCP, UVLO |
| Mfr | Intel |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | Enpirion® 5300 |
| Type | Non-Isolated PoL Module |
